EPDM PN16 Flanged/Tied
Useful Information

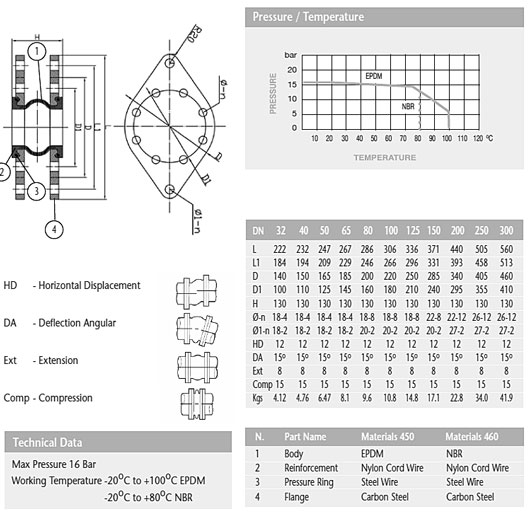

Technical Specification
- Body Material: EPDM
- Flange Material: Carbon Steel
- Flange Rating: PN16
- Pressure Rating: 16 bar
- Operating Temperature: -20°C to 100°C
- Application: Controlled movement, vibration absorption, industrial pipework protection
Description
This EPDM PN16 tied flanged flexible connector is designed to absorb vibration and minor thermal expansion while controlling axial movement, protecting pipework and connected equipment. The EPDM body offers excellent resistance to weathering, temperature variation, and a wide range of chemicals. Carbon steel PN16 flanges ensure a strong, secure connection, while the integral tie rods limit excessive movement under pressure. Rated to 16 bar and operating from -20°C to 100°C, it is ideal for industrial, HVAC, and process applications.
Key Features & Benefits
- Tied Design: Tie rods restrict excessive axial movement, maintaining joint stability under pressure.
- Flexible Connector: Absorbs vibration, noise, and minor thermal expansion in pipe systems.
- Durable EPDM Body: Resistant to ageing, weather, and chemicals.
- Carbon Steel Flanges: Secure, heavy-duty PN16 flanged connections.
- High Pressure Rated: Operates safely up to 16 bar.
- Wide Temperature Range: Reliable performance between -20°C and 100°C.
- Versatile Application: Ideal for HVAC, water treatment, industrial, and process systems.
| SKU | Product Code | Size ("/mm) |
| 353529 | AFLE450250 | 2 1/2 or 75 |
| 353530 | AFLE450300 | 3 or 90 |
| 353523 | AFLE450400 | 4 or 110 |
| 353524 | AFLE450500 | 5 or 140 |
| 353525 | AFLE450600 | 6 or 160 |
| 353526 | AFLE450800 | 8 or 225 |
| 353527 | AFLE4501000 | 10 or 250 |
| 353528 | AFLE4501200 | 12 or 300 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
