EPDM 16 Bar Rated BSPT

Loading...
Useful Information

Technical Specification

  • Body Material: EPDM
  • End Material: Malleable Iron
  • Connection Type: BSPT threaded taper
  • Pressure Rating: 16 bar
  • Operating Temperature: -20°C to 100°C
  • Application: Vibration isolation, thermal expansion absorption, pipework protection

Description

This EPDM expansion bellow is a high-performance flexible connector designed to absorb thermal expansion, vibration, and movement in pipework systems. Featuring a durable EPDM body and malleable iron union ends with BSPT threaded taper connections, it provides reliable, leak-free performance in demanding applications. Rated to 16 bar and suitable for operating temperatures from -20°C to 100°C, this bellow ensures long-term system protection across a wide range of installations.

Key Features & Benefits

  • Flexible Connector: Absorbs movement, vibration, and thermal expansion in pipe systems.
  • Durable EPDM Body: Resistant to temperature fluctuations, chemicals, and ageing.
  • Malleable Iron Union Ends: Strong and secure BSPT threaded taper connections.
  • High Pressure Rated: Operates safely up to 16 bar.
  • Wide Temperature Range: Suitable for -20°C to 100°C operation.
  • Versatile Application: Ideal for industrial, commercial, and mechanical pipework installations.



SKU Product Code Size (")
353482 AFLE400050 1/2
353483 AFLE400075 3/4
353484 AFLE400100 1
353485 AFLE400125 1 1/4
353486 AFLE400150 1 1/2
353487 AFLE400200 2
353488 AFLE400250 2 1/2
353488 AFLE400300 3

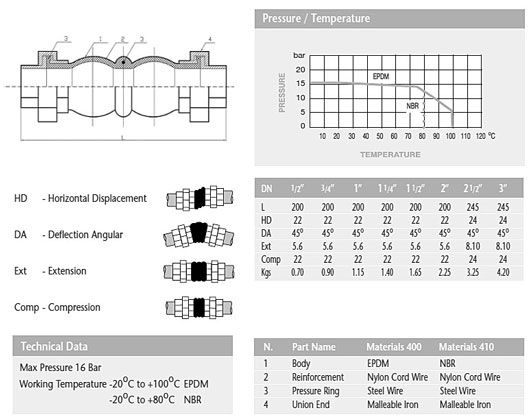

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
Code Product Name List Price You Save You Pay Quantity
353482 Flexible Connector EPDM Threaded BSPT 1/2" £36.39 50%
You Pay:  £18.20
353483 Flexible Connector EPDM Threaded BSPT 3/4" £43.07 50%
You Pay:  £21.54
353484 Flexible Connector EPDM Threaded BSPT 1" £46.38 50%
You Pay:  £23.19
353485 Flexible Connector EPDM Threaded BSPT 1 1/4" £52.01 50%
You Pay:  £26.01
353486 Flexible Connector EPDM Threaded BSPT 1 1/2" £63.75 50%
You Pay:  £31.88
353487 Flexible Connector EPDM Threaded BSPT 2" £80.03 50%
You Pay:  £40.02
353488 Flexible Connector EPDM Threaded BSPT 2 1/2" £116.79 50%
You Pay:  £58.40
353489 Flexible Connector EPDM Threaded BSPT 3" £148.13 50%
You Pay:  £74.07
