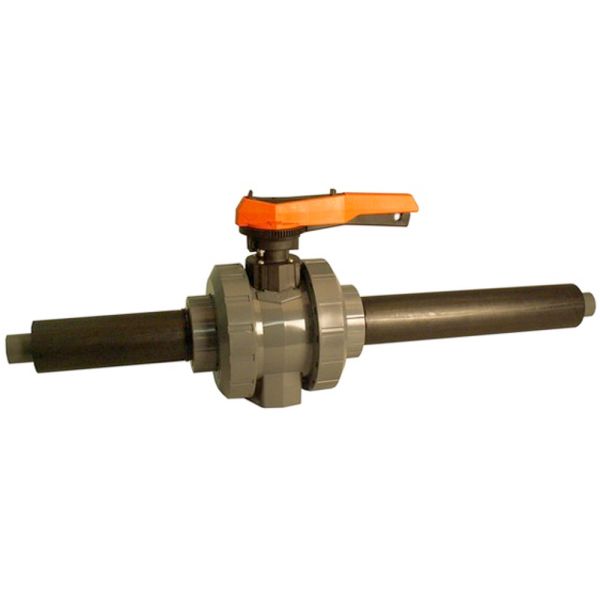

Ball valve type 546 PVC-C Dytex
Useful Information
These valves are made from PVC-C.
These valves require Dytex solvent cement to ensure a positive connection.
Valves with both EPDM and FPM are available.
These valves require manual operation.
They are designed for use within the dual containment system, Contain It Plus.
Â
| Pressure Rating | 6 - 16 bar |
| Sizes | 20mm - 63mm |
| Tangit Product Code | Dytex Product Code | D (mm) | d (mm) | Tangit Weight (kg) | Dytex Weight  (kg) |
| 396989 | 396995 | 50 | 20 | 4.500 | 4.500 |
| 396990 | 396996 | 50 | 25 | 7.000 | 7.000 |
| 396991 | 396997 | 63 | 32 | 7.300 | 7.300 |
| 396992 | 396998 | 75 | 40 | 9.800 | 9.800 |
| 396993 | 396999 | 90 | 50 | 11.800 | 11.800 |
| 396994 | 397000 | 110 | 63 | 13.200 | 13.200 |
Â
| HÂ Â (mm) | H2 (mm) | H1 (mm) | ZA1 (mm) | Zi2 (mm) | ZA2 (mm) | Zi1 (mm) |
| 222 | 85 | 182 | 255 | 329 | 330 | 286 |
| 222 | 85 | 182 | 255 | 326 | 330 | 289 |
| 234 | 105 | 194 | 275 | 348 | 355 | 312 |
| 244 | 123 | 210 | 325 | 399 | 410 | 366 |
| 244 | 123 | 210 | 340 | 409 | 425 | 386 |
| 244 | 123 | 210 | 350 | 457 | 480 | 403 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
