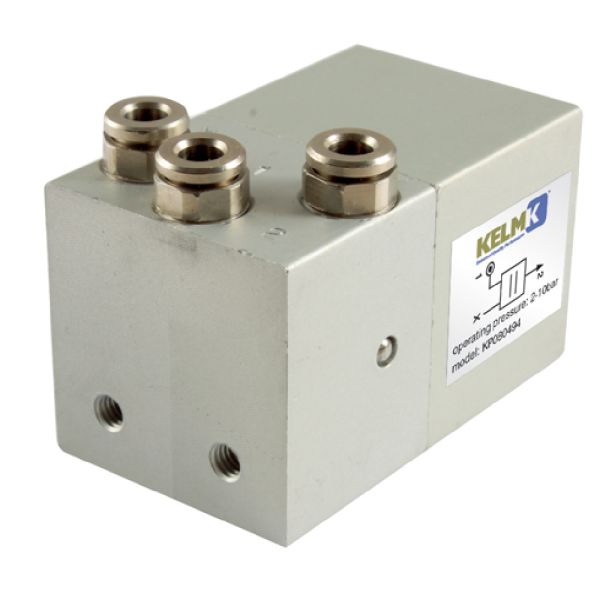

Kelm YES Valve

Key Features / Tech Specs:

• Manufactured by KELM
• Material: Aluminium body, NBR seals
• Actuating pressure at 6 bar: 1 bar
• Operating temperature: 0°C to 60°C
• 4mm push-in connection
•

Useful Info:

This logic valve is complete with 4mm push-in tube connectors along with a 2.5mm orifice and a flow rate of 100Nl per minute. This particular valve is a YES valve and is used where a logistical method is required in a pneumatic system. The air is to be filtered by 50µm filter element.

These valves are manufactured from aluminium with brass OT58 internal components, NBR rubber seals and a stainless steel spring.

These valves require no lubrication, however, will operate in a lubricated or non-lubricated system.
