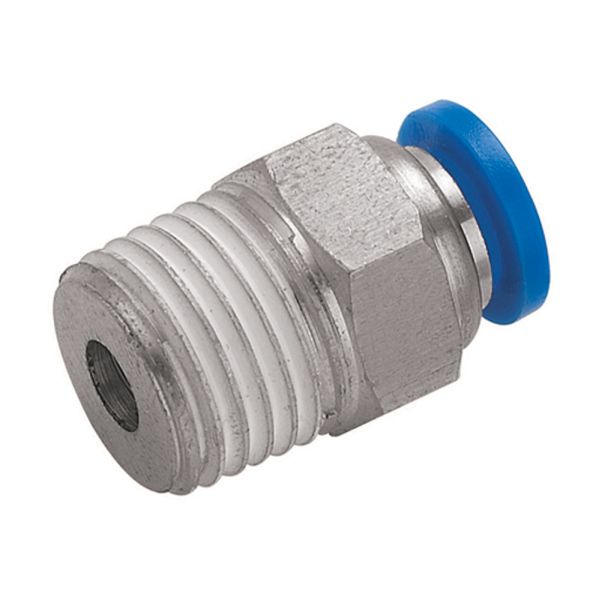

Kelm Stud Coupling M
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Nickel Plated Brass
- Media: Air and Vacuum Only
- NPT Male Thread
- Max. Pressure 10 bar
- Operating Temperature: 0°C to +60°C
| Product Code | D (inch) | D1 (mm) | R (thread) | A (mm) | B (mm) | C (mm) | H (inch) |
| 366560 | 1/8 | 10 | 1/8 | 8 | 21 | 16 | 7/16 |
| 366561 | 1/8 | 10 | 1/4 | 11 | 21.5 | 16 | 9/16 |
| 366562 | 5/32 | 10 | 1/8 | 8 | 21 | 16 | 7/16 |
| 366563 | 5/32 | 10 | 1/4 | 11 | 21.5 | 16 | 9/16 |
| 366564 | 3/16 | 12.8 | 1/8 | 8 | 21 | 16 | 7/16 |
| 366565 | 3/16 | 12.8 | 1/4 | 11 | 21.5 | 16 | 9/16 |
| 366566 | 3/16 | 12.8 | 3/8 | 12 | 24 | 16 | 11/16 |
| 366567 | 1/4 | 12.8 | 1/8 | 8 | 24 | 17 | 1/2 |
| 366568 | 1/4 | 12.8 | 1/4 | 11 | 23.5 | 17 | 9/16 |
| 366569 | 1/4 | 12.8 | 3/8 | 12 | 24.5 | 17 | 11/16 |
| 366570 | 5/16 | 13.8 | 1/8 | 8 | 27 | 18 | 9/16 |
| 366571 | 5/16 | 13.8 | 1/4 | 11 | 26.5 | 18 | 9/16 |
| 366572 | 5/16 | 13.8 | 3/8 | 12 | 25 | 18 | 11/16 |
| 366573 | 3/8 | 16.8 | 1/8 | 8 | 29.1 | 19.3 | 11/16 |
| 366574 | 3/8 | 16.8 | 1/4 | 11 | 31.1 | 19.3 | 11/16 |
| 366575 | 3/8 | 16.8 | 1/2 | 15 | 28.6 | 19.3 | 7/8 |
| 366576 | 3/8 | - | 3/4 | - | - | - | - |
| 366577 | 1/2 | 20.5 | 1/4 | 11 | 33 | 20 | 7/8 |
| 366578 | 1/2 | 20.5 | 3/8 | 12 | 31 | 20 | 7/8 |
| 366579 | 1/2 | 20.5 | 1/2 | 15 | 29.5 | 20 | 7/8 |
Â
Useful Info:
One-touch fittings provide convenient instant connection and disconnection with no tools required.
Nickel-plated brass fittings ensure long product life.
Tapered fittings are precoated with Teflon sealant.
