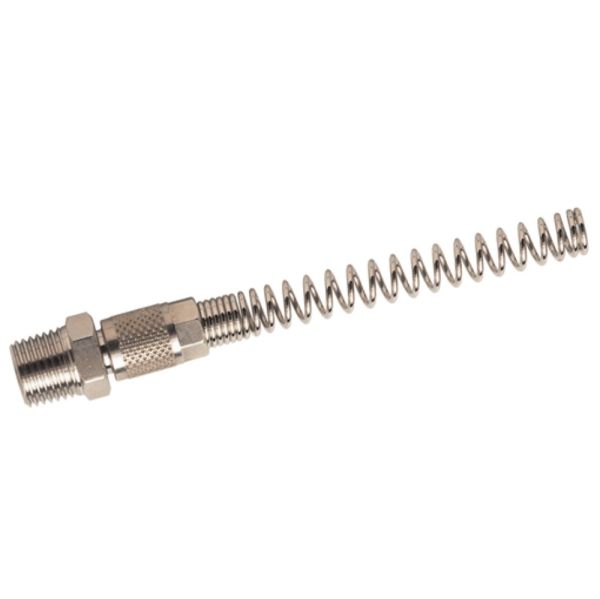

Stud M with Spring Guard
Key Features / Tech Specs / Dimensions:
- Body Material: Nickel Plated Brass
- Temperature: -20° - +80°
- Max. Pressure 15 bar
| Product Code | Tube | A (inch) | B | L | CH |
| 370255 | 6/4 | 1/8 | 7.5 | 108 | 12 |
| 370256 | 6/4 | 1/4 | 11 | 112.5 | 14 |
| 370257 | 8/6 | 1/4 | 11 | 118 | 14 |
| 370258 | 8/6 | 3/8 | 11.5 | 119 | 17 |
| 370259 | 8/6 | 1/2 | 14 | 121 | 22 |
| 370260 | 10/8 | 1/8 | 7.5 | 122 | 14 |
| 370261 | 10/8 | 1/4 | 11 | 126 | 14 |
| 370262 | 10/8 | 3/8 | 11.5 | 127 | 17 |
| 370263 | 10/8 | 1/2 | 14 | 130 | 22 |
Useful Info:
General fitting is achieved by feeding tubing through locking nut onto fitting cone and the refitting Locking Nut. For more fitting guidlines go to Brass Quick Fit Fittings top page.
Built to be used in conjunction with other Kelm Pneumatic products, including our Polyurethane tubing.
