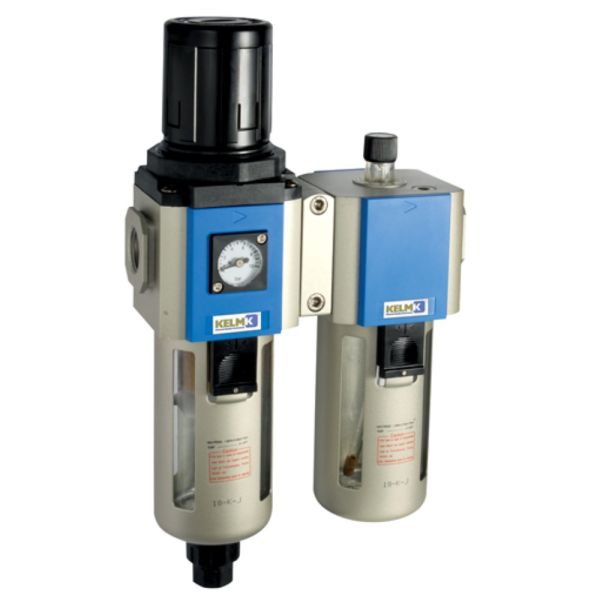

Kelm F/RL Combination Units 400 Series
Useful Information
Key Features / Tech Specs:
- Manufactured by Kelm
- Temperature Range -5°C - 60°C
- Max. Pressure 10 bar
- 40 Micron filter element fitted as standard (5 Micron filter available)
- BSPP Thread type
| Product Code | A | B | C | D (Inch) | E (Inch) | F | G | H | I | J | K |
| 372079 | 85.5 | 50 | 80 | 3/8 | 1/4 | M55 x 2.0 | 164 | 165.5 | 8.5 | 12 | 269.5 |
| 372080 | 85.5 | 50 | 80 | 1/2 | 1/4 | M55 x 2.0 | 164 | 165.5 | 8.5 | 12 | 269.5 |
| 372081 | 85.5 | 50 | 80 | 3/8 | 1/4 | M55 x 2.0 | 164 | 165.5 | 8.5 | 12 | 269.5 |
| 372082 | 85.5 | 50 | 80 | 1/2 | 1/4 | M55 x 2.0 | 164 | 165.5 | 8.5 | 12 | 269.5 |
Useful Info:
Filter units remove particulates and contaminates as well as separating moisture, because of this cleaner air in your pneumatic system, service life of any downstream tool or machinery is increased.
Regulator allows for the adjustment of pressure in a pneumatic system following the unit.
Lubricators use ISO 32 airline oil to keep airline tools lubricated providing a longer service life.
Change filter element regularly.
Check for correct flow direction on unit as well as thread type.
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
