Walraven Heavy Duty Unlined Pipe Clip

Loading...
main product photo
More Info
Useful Information

Technical Specification

  • Manufacturer: Walraven
  • Product Line: HD500 (Heavy Duty Unlined Clamps)
  • Materials:
  • Size Range:
    • M8/M10: 15mm to 71mm
    • M10/M12: 72mm to 227mm
    • M16: 159mm to 509mm
  • Suitable for: Steel pipes
  • Application Environment: Suitable for use indoors and outdoors.
  • Environmental Product Declaration: EPDs available.
  • Approvals: ETA, RAL-GZ 655/B, RAL-GZ 656, VdS (only on specific sizes)
  • Features:
    • Anti-loss washers
    • CO2-welded connection nut
    • Tested for fire safety
    • Captive locking nut
    • Wide opening

Description

 Engineered for the secure fixing of steel pipework in demanding environments, this heavy-duty unlined clamp provides a strong, dependable support solution across a wide range of pipe diameters. The two-part body is tightened using paired locking bolts, while the integrated anti-loss washers simplify handling during installation, particularly in overhead or restricted positions. A CO2-welded connection nut ensures a robust fastening point for threaded rod or channel systems, enhancing long-term structural stability. The BIS UltraProtect 1000 finish offers outstanding corrosion resistance for both indoor and outdoor use, as confirmed by the minimum 1,000-hour salt spray test performance.

Ideal for building services, industrial systems, mechanical plant, and infrastructure works, this unlined version is suited to applications where direct pipe-to-metal contact is required. With comprehensive approvals across the range, these clips support use in regulated environments, including systems requiring CE marking, ETA certification, RAL compliance, VdS approval for selected sizes, and EPD documentation.

What are "Anti-Loss Washers"?
  • Anti-loss washers are integrated components that prevent the clamp’s screws from detaching during installation. They secure the screw in place even when loosened, allowing the installer to position and adjust the clamp with one hand. This feature saves time, reduces the risk of dropped parts on site, and contributes to a safer and more efficient installation process.

Captive Nut and Screw

The nut and locking screw stay captive because of the plastic nut holder and anti-loss washer.

No Sharp Edges or Corners

The HD clamp is a straightforward assembly, well-finished with no sharp edges or corners.

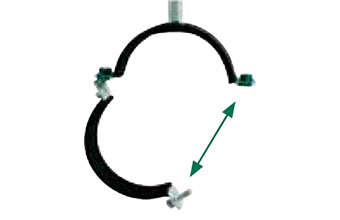

Wide Opening

There is sufficient space between both clamp halves to place the pipe, meaning only one locking screw needs to be unscrewed.

Key Features & Benefits

  • Heavy-duty construction: Provides reliable support for steel pipework in demanding applications
  • Two locking bolts: Ensures a secure, rigid clamping force around the pipe
  • Anti-loss washers: Prevent dropped hardware and speed up installation
  • CO2-welded connection nut: Creates a strong, reliable threaded fixing point
  • UltraProtect 1000 coating: Offers long-lasting corrosion resistance suitable for indoor and outdoor environments
  • High corrosion performance: Withstands 1,000 hours of salt spray testing for maximum durability
  • Fire tested: Suitable for systems requiring proven fire performance

Approvals Explained

  • ETA (European Technical Assessment):
    • A European Technical Assessment is a recognised, Europe-wide technical evaluation that allows a non-standard construction product to be CE-marked and marketed legally across the EU. It ensures consistent testing, reliable performance data, and compliance with the Construction Products Regulation.
  • RAL GZ-655/B:
    • RAL-GZ 655/B is a recognised German quality standard that certifies the safety, strength and reliability of pipe clamps and support systems through strict, independently verified testing.
  • RAL GZ-656:
    • RAL‑GZ 656 is a German quality standard for fire-tested pipe supports. It certifies that pipe clamps, brackets, rails and related supports have been subjected to independent fire-resistance testing.
  • VdS:
    • VdS approval is a certification mark from VdS Schadenverhütung, an independent German testing and certification institution, for products and services in fire and security technology. This approval is only present on the M10/M12 sizes of this product.
  • ISO 9227:
    • ISO 9227 is the global standard for salt spray testing, providing a controlled method to assess the corrosion resistance of metals and coatings under aggressive saline conditions.

For a full list of approvals for each specific item, please see the datasheet linked below.

Dimensions

Product Code Manufacturer Code Clamp Range (mm) G (mm) H (mm) W (mm) DtT (mm) MW (mm) MT (mm) ds (Screw Size) Max Load (N)
492010 33038019 15-19 M8/M10 46 75 30 30 2.5 M8 2100
492011 33038023 19-23 M8/M10 50 78 30 30 2.5 M8 2100
492012 33038030 25-30 M8/M10 7 84 30 30 2.5 M8 2100
492013 33038036 31-36 M8/M10 63 91 30 30 2.5 M8 2100
492014 33038042 37-42 M8/M10 69 98 30 30 2.5 M8 2100
492015 33038045 40-45 M8/M10 72 101 30 30 2.5 M8 2100
492016 33038052 57-52 M8/M10 79 109 30 30 2.5 M8 2100
492017 33038058 53-58 M8/M10 85 115 30 30 2.5 M8 2100
492018 33038065 59-65 M8/M10 92 122 30 30 2.5 M8 2100
492019 33038071 66-71 M8/M10 98 129 30 30 2.5 M8 2100
492020 33048078 72-78 M10/M12 115 136 30 30 3 M8 4000
492021 33048085 79-85 M10/M12 122 144 30 30 3 M8 4000
492022 33048092 86-92 M10/M12 129 152 30 30 3 M8 4000
492023 33048106 98-106 M10/M12 143 165 30 30 3 M8 4000
492024 33048116 108-116 M10/M12 153 175 30 30 3 M8 4000
492025 33048123 116-123 M10/M12 160 182 30 30 3 M8 4000
492026 33048133 125-133 M10/M12 170 193 30 30 3 M8 4000
492027 33048140 132-140 M10/M12 177 200 30 30 3 M8 4000
492028 33048154 148-154 M10/M12 191 215 30 30 3 M8 4000
492029 33048169 159-169 M10/M12 207 240 38 38 4 M10 8200
492030 33048183 173-183 M10/M12 221 254 38 38 4 M10 8200
492031 33048202 192-202 M10/M12 240 274 38 38 4 M10 8200
492032 33048219 208-219 M10/M12 256 290 38 38 4 M10 8200
492033 33048227 217-227 M10/M12 265 299 38 38 4 M10 8200
492034 33068169 159-169 M16 193 241 38 38 4 M10 8200
492035 33068183 173-183 M16 207 255 38 38 4 M10 8200
492036 33068202 192-202 M16 226 274 38 38 4 M10 8200
492037 33068227 217-227 M16 263 299 38 38 4 M10 8200
492038 33068241 229-241 M16 277 322 38 38 4 M12 8200
492039 33068254 244-254 M16 290 335 38 38 4 M12 8200
492040 33068264 254-264 M16 300 345 38 38 4 M12 8200
492041 33068279 267-279 M16 315 360 38 38 4 M12 8200
492042 33068289 279-289 M16 324 367 48 48 5 M12 12000
492043 33068302 292-302 M16 337 380 48 48 5 M12 12000
492044 33068325 315-325 M16 358 403 48 48 5 M12 12000
492045 33068360 350-360 M16 395 439 48 48 5 M12 12000
492046 33068374 364-374 M16 409 453 48 48 5 M12 12000
492047 33068389 379-389 M16 424 468 48 48 5 M12 12000
492048 33068408 398-408 M16 443 487 48 48 5 M12 12000
492049 33068418 408-418 M16 441 498 48 48 5 M12 12000
492050 33068436 424-436 M16 471 515 48 48 5 M12 12000
492051 33068458 448-458 M16 493 537 48 48 5 M12 12000
492052 33068509 499-509 M16 544 588 48 48 5 M12 12000

All products are tested according to RAL-GZ 655/B Ø 15 - 227 also tested according to RAL-GZ 656.

Downloads

Walraven Heavy Duty Rubber Lined Pipe Clip with Lining DatasheetWalraven Heavy Duty Rubber Lined Pipe Clip with Lining Datasheet
Datasheet
Walraven BIS Heavy Duty Clamps BrochureWalraven BIS Heavy Duty Clamps Brochure
Brochure
Walraven BIS Heavy Duty Clamp InstructionsWalraven BIS Heavy Duty Clamp Instructions
Instructions
Walraven Assembly InstructionsWalraven Assembly Instructions
Assembly Instructions

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
