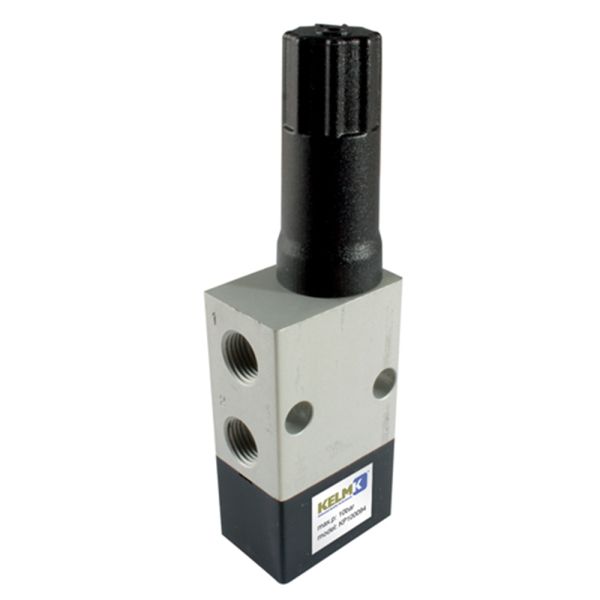

Kelm Normally Closed Impulse Valve

Key Features / Tech Specs:

• Manufactured by KELM
• 1/8" port
• Material: Aluminium body, NBR seals
• Working pressure: 30 to 145psi
• Operating temperature: 0°C to 60°C
• Time regulating range: 0-15 seconds
•

Useful Info:

This Normally Closed Impulse valve produces an adjustable impulse of fixed duration by adjusting the black handle (R). This allows the user timed control over the air release of port 2 when port 1 is supplied. The flow can be terminated by removing the air supply from port 1.

They are complete with a 1/8" port used in conjunction with air and pneumatic systems.

These valves are manufactured from aluminium with brass OT58 internal components, NBR rubber seals and a stainless steel spring.

They require no lubrication, however, will operate in a lubricated or non-lubricated system. The air is to be filtered by 50µm filter element.
