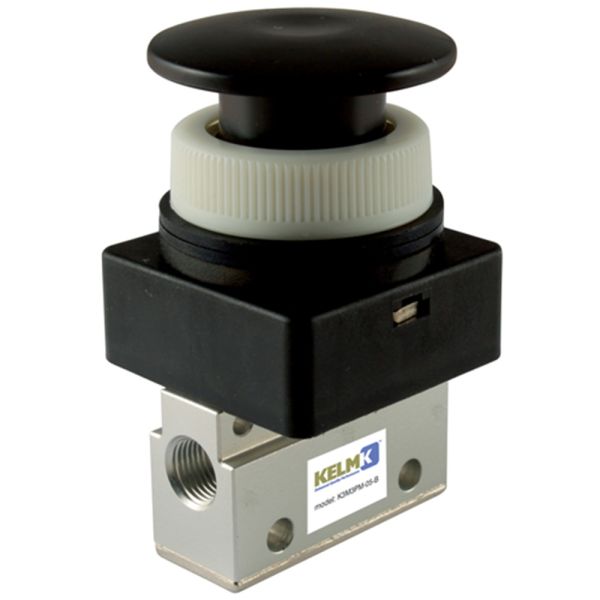

Kelm Palm Button Metric

Key Features / Tech Specs:

• Manufactured by KELM
• Material: Aluminium alloy body, NBR seals
• Max. Pressure: 10 bar
• Operating Temperature: -20°C to 70°C
• Colours available: Black, green or red
• Metric thread
• 3/2 Way
•
• A - Outlet Port
• P - Air Input
• R - Exhaust Port

Useful Info:

This palm button valve is complete with M5 metric thread with a 2mm orifice and a Cv value of 0.11. It is used for the manual or mechanical control of air flow within pneumatic systems. The air is to be filtered by 40µm filter element.

Air is passed through the valve once the palm button is pressed and held and is spring loaded to return the button to the closed position, shutting off the valve when released by the operator.

Manufactured from a high-quality aluminium alloy with nitrile rubber seals with a working pressure of 0 to 10 bar. They have multiple mounting points for convenient installation and come complete with panel mount locknuts.

These valves require no lubrication and are to be used in conjunction with clean compressed air, manufactured to close tolerance.
