Prevost Large Industrial Rubber Air Hose Reel
Technical Specification
- Media Type: Compressed Air
- Hose Material: Rubber
- Flow Rate: 260 to 1800 L/min (depending on model)
- Hose Length Options: 10m, 15m, or 20m
- Max Operating Pressure: 12 bar
- Operating Temperature: -15°C to 40°C
- Net Weight: 15.4 to 17.4kg (depending on model)
- Case Material: Galvanised steel with UV-resistant polyester coating
- Auto Rewind: System to retract the hose automatically
- Mounting Options: Wall or ceiling
- Adjustable Stop: Holds the hose at the desired length
- Inlet Hose: 1m length
Description
Designed for demanding industrial environments, this heavy-duty rubber hose reel ensures reliable air delivery and safe, user-friendly operation. Engineered with a reinforced galvanised steel housing and UV-resistant powder coating, it offers long-term resilience in harsh and high-use applications.
The reel features a spring-assisted auto rewind mechanism, adjustable locking stop, and anti-whiplash coupling. All optimised to improve safety and efficiency in the workplace.
Delivering flow rates between 260 and 1800 L/min, it accommodates a wide range of pneumatic tools and machinery. This series is ideal for workshops, manufacturing facilities, and industrial service areas requiring consistent air supply, secure hose management, and professional-grade durability.
Key Features
- Safety Spring Mechanism: Provides a controlled hose return, preventing rapid retraction that could cause injury or damage.
- Anti-Whiplash Coupling: Allows for the safe decompression and disconnection of pneumatic tools in a single movement, preventing hose whip and potential injuries.
- Locking System: Holds the hose at the desired length, allowing users to work comfortably without hose pullback.
- Anti-Twist Pipe Protectors: Prevents the hose from twisting, ensuring smooth operation and extending the hose's lifespan.
- Limit Switch: Enhances user control by limiting the hose retraction point.
- Galvanised Steel Housing: Features a UV-resistant polyester-based electrostatic powder coating that protects against corrosion and wear, ensuring durability even in harsh environments.
- 360-Degree Rotating Air Inlet: Connected via a 1-metre supply hose (included), the air inlet is protected by a plastic cover and allows for flexible hose movement.

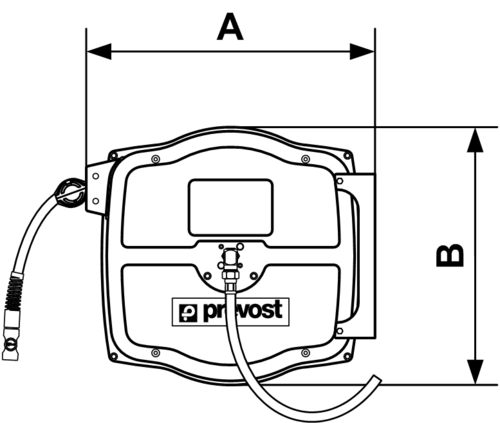

Materials & Dimensions
| Product Code | Prevost Code | ID/OD (mm) | Length (m) | Coupling | Flow Rate (l/min) | Weight (kg) | A (mm) | B (mm) |
| 406993 | DGF 0810BS | 8 x 14 | 10 | BSI 06 (British) | 500 | 15.446 | 520 | 462 |
| 406994 | DGF 0815BS | 8 x 14 | 15 | BSI 06 (British) | 350 | 16.446 | 520 | 462 |
| 406995 | DGF 0820BS | 8 x 14 | 20 | BSI 06 (British) | 260 | 17.186 | 520 | 462 |
| 406996 | DGF 0810ES | 8 x 14 | 10 | ESI 07 (Euro) | 500 | 15.446 | 520 | 462 |
| 406997 | DGF 0815ES | 8 x 14 | 15 | ESI 07 (Euro) | 350 | 16.446 | 520 | 462 |
| 406998 | DGF 0820ES | 8 x 14 | 20 | ESI 07 (Euro) | 260 | 17.186 | 520 | 462 |
| 406999 | DGF 1010ES | 10 x 17 | 10 | ESI 07 (Euro) | 900 | 15.436 | 520 | 462 |
| 407000 | DGF 1015ES | 10 x 17 | 15 | ESI 07 (Euro) | 700 | 16.486 | 520 | 462 |
| 407001 | DGF 1310ES | 13 x 20 | 20 | ESI 07 (Euro) | 1800 | 17.400 | 520 | 462 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
