Case Material: Galvanised steel with UV-resistant polyester coating
Auto Rewind: System to retract the hose automatically
Mounting Options: Wall or ceiling
Adjustable Stop: Holds the hose at the desired length
Inlet Hose: 1m length
Description
This medium braided hose reel is engineered for reliable distribution of compressed air in workshops and industrial environments. The polyurethane hose with fabric braid delivers flexibility, abrasion resistance, and stability under pressure. The automatic rewind mechanism allows quick, safe hose retraction, and mounting options enable installation in various orientations. With a 12 bar rated pressure and robust construction, it suits frequent use with pneumatic tools over moderate distances.
Key Features
Safety Spring Mechanism: Provides a controlled hose return, preventing rapid retraction that could cause injury or damage.
Anti-Whiplash Coupling: Allows for the safe decompression and disconnection of pneumatic tools in a single movement, preventing hose whip and potential injuries.
Locking System: Holds the hose at the desired length, allowing users to work comfortably without hose pullback.
Anti-Twist Pipe Protectors: Prevents the hose from twisting, ensuring smooth operation and extending the hose's lifespan.
Limit Switch: Enhances user control by limiting the hose retraction point.
Galvanised Steel Housing: Features a UV-resistant polyester-based electrostatic powder coating that protects against corrosion and wear, ensuring durability even in harsh environments.
Materials & Dimensions

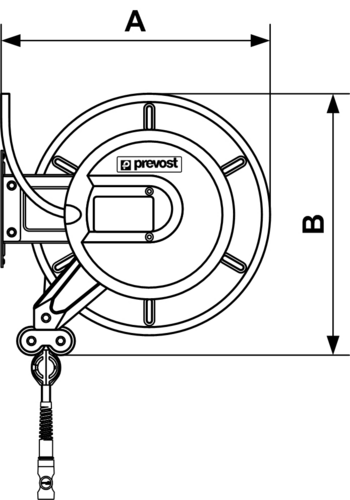

Product Code
Prevost Code
ID/OD (mm)
Length (m)
Coupling
Flow Rate (l/min)
Weight (kg)
A (mm)
B (mm)
407045
DVO 1025ES
10 x 14
25
ESI 07 (Euro)
500
16.5
460
447
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
