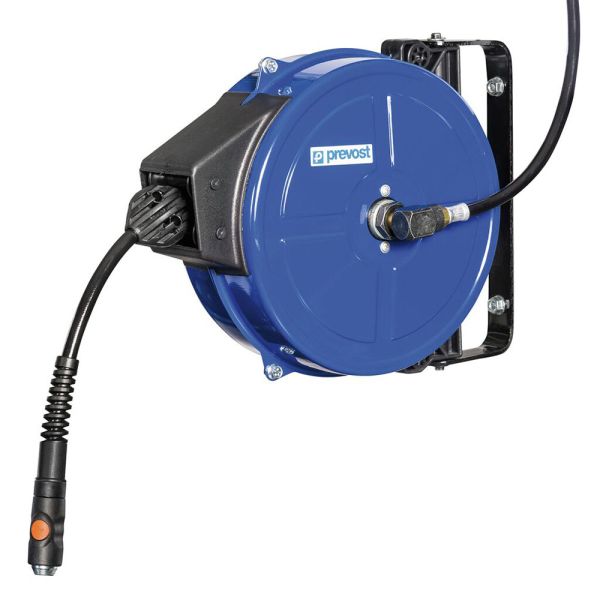

Prevost Small Industrial Air Hose Reel
Technical Specification
- Media Type: Compressed Air
- Hose Material: Polyurethane
- Flow Rate: 500 L/min
- Hose Length Options: 12m
- Max Operating Pressure: 12 bar
- Operating Temperature: -15 °C to 40 °C
- Net Weight: 6.4kg
- Case Material: Galvanised steel with UV-resistant polyester coating
- Auto Rewind: System to retract the hose automatically
- Swivel Bracket: 180° pivot range
- Mounting Options: Wall or ceiling
- Adjustable Stop: Holds the hose at the desired length
- Inlet Hose: 1m length
Description
This industrial-grade polyurethane hose is engineered for demanding compressed‑air applications. Designed with robust materials and precise tolerances, it ensures reliable performance under pressure, while maintaining flexibility and durability over a wide temperature range. Its compact dimensions and standard connection make it well-suited for integration into pneumatic networks, tool feeds, and automated systems. The hose meets international profile standards, making it compatible with common fittings and couplings.
Key Features
- Safety Spring Mechanism: Provides a controlled hose return, preventing rapid retraction that could cause injury or damage.
- Anti-Whiplash Coupling: Allows for the safe decompression and disconnection of pneumatic tools in a single movement, preventing hose whip and potential injuries.
- Quick Mounting System: Facilitates easy installation with three possible hose orientations, ensuring adaptability to different workspaces.
- Locking System: Holds the hose at the desired length, allowing users to work comfortably without hose pullback.
- Anti-Twist Pipe Protectors: Prevents the hose from twisting, ensuring smooth operation and extending the hose's lifespan.
- Limit Switch: Enhances user control by limiting the hose retraction point.
- Galvanised Steel Housing: Features a UV-resistant polyester-based electrostatic powder coating that protects against corrosion and wear, ensuring durability even in harsh environments.
- 180-Degree Swivel Bracket: The reel can be mounted on walls or overhead structures, providing flexibility in installation and improving workspace organisation.
Quick Mounting System
The Prevost quick mounting system simplifies hose reel installation. The bracket detaches from the reel, allowing it to be fixed to the wall with ease. Once in place, the reel can be quickly mounted onto the bracket and secured with the quick-mounting clip, no awkward handling required.
Hose Positioning
The Prevost hose reel features an adjustable inlet that can be positioned in three different orientations, allowing flexibility to suit the installation. This design helps maintain a neat and organised setup while preventing sharp bends or kinks that could restrict flow.

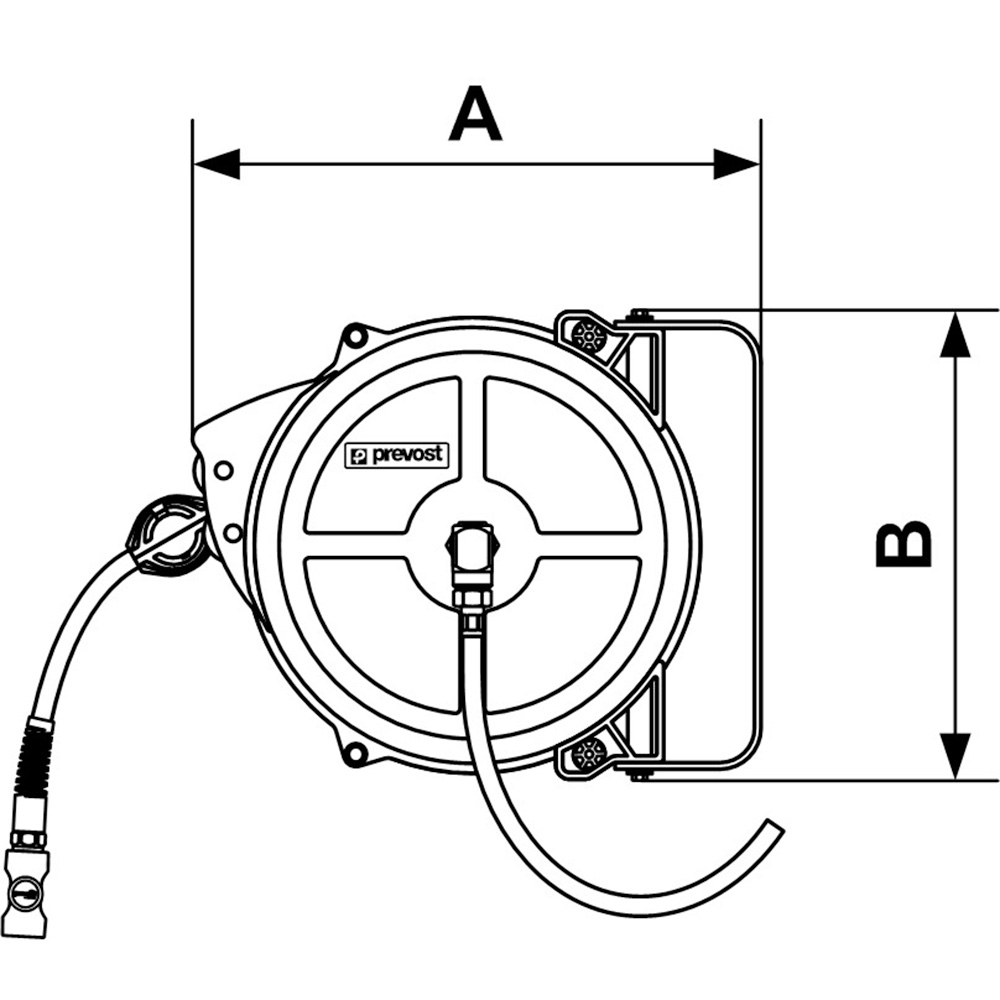

Materials & Dimensions
| Product Code | Prevost Code | ID/OD (mm) | Length (m) | Coupling | Flow Rate (l/min) | Weight (kg) | A (mm) | B (mm) |
| 406958 | DMF 0812BS | 8 x 12 | 12 | BSI 06 (British) | 500 | 6.4 | 350 | 287 |
| 406959 | DMF 0812ES | 8 x 12 | 12 | ESI 07 (Euro) | 500 | 6.4 | 350 | 287 |
