Case Material: Galvanised steel with UV-resistant polyester coating
Mounting Options: Wall or ceiling
Description

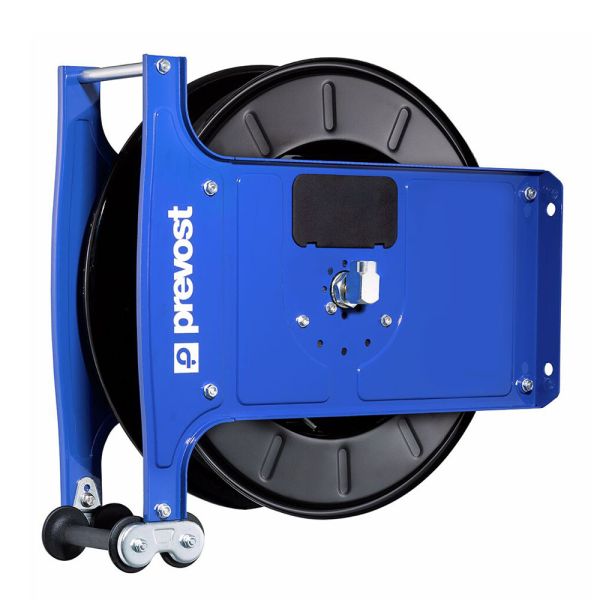

This high-pressure reel is supplied empty, allowing you to install a hose suited to your demands. Built to handle severe service conditions, the sturdy steel frame with an epoxy coating resists corrosion, while the ratchet-stop mechanism ensures precise length control under pressure.
Key Features
Flexibility in hose selection: Supplied without hose, giving freedom to choose material, diameter or length to match the application
Sturdy steel construction: Suitable for harsh industrial environments
Compact open design: Easier access, inspection, and maintenance
Standard thread compatibility (G3/8): Works with many pneumatic systems
Fixed bracket mounting: Simplifies installation; swivel options may exist in compatible versions

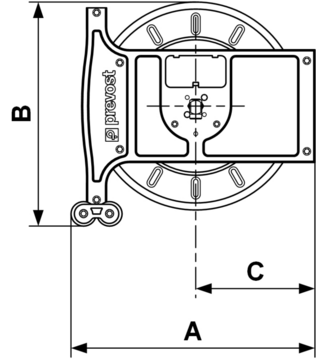

Materials & Dimensions
Product Code
Prevost Code
ID/OD (mm)
Length (m)
Male Thread
Female Thread
Weight (kg)
A (mm)
B (mm)
C (mm)
407067
DMO NHP
-
15
3/8" BSPP
3/8" BSPP
15.5
485
475
237
407068
DGO NHP
-
20
3/8" BSPP
3/8" BSPP
20.5
485
480
237
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
