This premium replacement cartridge for the Prevost MFS series delivers outstanding coalescing filtration performance at 0.01 μm. Engineered to maintain optimal air purity in high-demand pneumatic systems, it effectively eliminates micro-particles, oil vapours, and water aerosols. With durable aluminium construction and high flow capability, it ensures reliable operation across a range of industrial settings.
Key Features & Benefits
High-Efficiency Filtration: Provides ultra-fine coalescing filtration down to 0.01 μm, capturing oil mist, vapour, and ultra-fine contaminants to protect sensitive equipment.
Optimised Flow Rate: Handles up to 25833.33 l/min at 7 bar with minimal pressure drop (ΔP = 0.10 bar), preserving air delivery and system efficiency.
Durable Aluminium Build: Constructed from corrosion-resistant aluminium for consistent performance and long operational life in industrial environments.
Wide Temperature Range: Operates between 3 °C and 80 °C, maintaining effective filtration under varied ambient conditions.
Easy Integration: Designed specifically for use with the Prevost MFS filter housing, ensuring secure and efficient replacement.
High Pressure Capability: Supports maximum operating pressure up to 20 bar, meeting the demands of high-pressure air networks.
SKU
Prevost Code

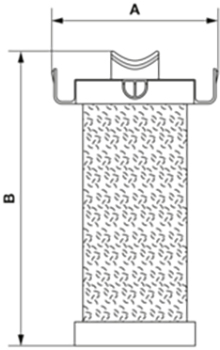

A (mm)
B (mm)
C (mm)
Flow Rate At 6 Bar (m³/h)
Flow rate l/min at 7 bar (ΔP = 0.10 bar)
488902
MFSC 5532
58.7
163.7
163.7
55
916.66
488903
MFSC 7040
98.59
137.2
137.2
70
1166.66
488904
MFSC 10060
98.59
167.19
167.19
100
1666.66
488905
MFSC 15090
107
187.2
187.2
150
2500.00
488906
MFSC 225130
107
247.2
247.2
225
3750.00
488907
MFSC 300175
110.9
303
303
300
5000.00
488908
MFSC 400235
110.9
392
392
400
6666.66
488909
MFSC 500295
113.7
328.53
328.53
500
8333.33
488910
MFSC 800470
113.7
513.5
513.5
800
13333.33
488911
MFSC 1550910
113.7
518.5
518.5
1,550
25833.33
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
