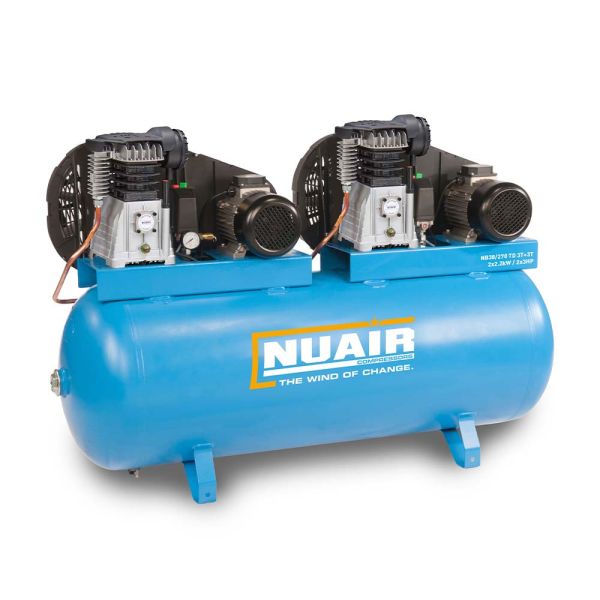

NUAIR Belt Drive Workshop Series Low Noise Tandem Stationary Air Compressor

• Compressor Type: Tandem, belt-driven, oil-lubricated
• Pump Units: Twin B38B low-noise, single-stage pumps
• Motor Power: 2.2 + 2.2 kW (3 + 3 Hp)
• Air Displacement: 710 L/min (27.9 CFM)
• Maximum Pressure: 10 bar (145 psi) - All Models
• Receiver Capacity: 270 litres (CE certified)
• Voltage Options: 230 V, 400 V (32A supply)
• Noise Level: 69 dB(A)
• Outlet: 1/2" BSP
• Start & Control Features:
• NB38/270 TD 3M+3M PRO:
• Special controller with staggered start
• Lead machine control for balanced run time
• NB38/270 TD 3T+3T PRO:
• Standard automatic stop/start
• Protection: Full motor overload protection

Designed for workshops that require maximum air performance while maintaining lower noise levels, the FPS NB38 Lubricated Tandem Series compressors deliver high output and quiet operation. These models are fitted with twin low-noise B38B single-stage, lubricated compressor pumps, arranged in a belt-driven tandem configuration. With a total output of 27.9 CFM, these units are available in both 230V (single-phase) and 400V (three-phase), making them suitable for a wide range of workshop installations. A large 270-litre receiver and intelligent controller for staggered starting and balanced load sharing enhance performance, efficiency, and electrical safety.

• Twin B38B Low-Noise Pump Units: Proven performance with quiet operation, suitable for noise-sensitive environments.
• Tandem Belt-Driven Design: Enables slower running speeds and reduced wear, while delivering double the output.
• Advanced Cooling System: Cooled airflow directed to the pump heads, valves, and aftercoolers to minimise operating temperature.
• Staggered Start & Lead Machine Control (230V model): Minimises electrical loading at startup and balances operating hours for each pump.
• Oversized 270L CE-Certified Receiver: Supports longer tool runtimes and reduces restart cycles.
• Industrial-Grade Electric Motors: Dual 2.2 kW (3 HP) motors with full overload protection for reliability and safety.
• Low Operating Noise: Operates at just 69 dB(A)—significantly quieter than standard industrial compressors.
• Stop/Start Control: Energy-efficient operation with automatic pressure switch activation.
• 2-Year Pump Warranty: Backed by a 24-month warranty on the pump (T&Cs apply).

-
