230 V (Single-phase)/13A, 16A, 20A (Model Dependant)
400 V (Three-phase)/10A
Cable Length: 2 Meters
Outlet Thread Size: Series 25 Coupling
Ball Valve Outlet: 1/2"
Head Bolt Torque: 27 Nm
Drive Type: Belt-driven
Mounting: Stationary
Cooling System: Fitted with aftercoolers for cooler, drier air output
Control System: Automatic stop/start pressure switch
Noise Level: Low-speed design for reduced noise and wear
Description

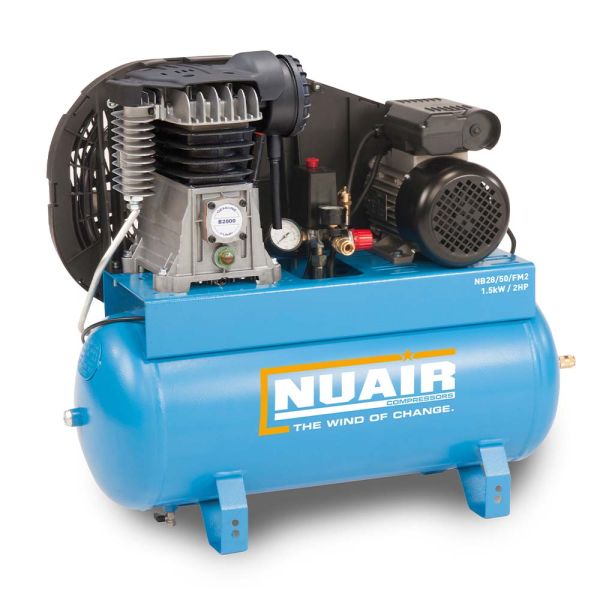

The FPS Belt Drive Lubricated Workshop Series offers a robust, reliable solution for trade and professional environments that demand consistent compressed air delivery. Engineered for long life and low-speed operation, each unit is fitted with genuine B2800B or B3800B PRO cast iron pump units and runs on either 230V or 400V supply. With receiver capacities from 50L to 200L and displacement ranging from 9 to 19 CFM, this range is ideal for a wide spectrum of applications—from general workshops to more demanding pneumatic tasks. These compressors also feature an advanced HI-FLO cooling system.
Key Features & Benefits
High-Performance Belt Drive Pumps: Features B2800B-PRO and B3800B-PRO cast iron compressors for durable, long-lasting performance.
Low-Speed Operation: Reduced wear and lower operating noise due to slower-running pumps.
Multiple Voltage Options: Available in both 230V single-phase and 400V three-phase to suit workshop infrastructure.
Automatic Stop/Start Control: Standard on all models for safety and energy efficiency.
Air Aftercoolers: Cooler outlet air for improved tool performance and reduced moisture carryover.
1-Year Pump Warranty: Supplied with 12-month warranty on pump components (T&Cs apply).
SKU
FPS Code
Model Type
kW
Hp
L/min
c.f.m
dB(A)
Receiver Size
Volt
L x W x H
Kg
489700
S-28DC404FPS169
B2800B-PRO/50 FM2 UK
1.5
2
255
9
-
50L
230 (13A)
870 x 370 x 780
63
489701
S-28FN504FPS140
B2800B-PRO/100 FM3 UK
2.2
3
355
12.5
67
100L
230 (13A)
1070 x 385 x 840
72
489702
S-28FN541FPS137
B2800B-PRO/100 FT3 UK
2.2
3
355
12.5
67
100L
400 (10A)
1070 X 385 X 840
70
489703
S-36HN504FPS142
B3800B-PRO/150 FM3 UK
2.2
3
355
13.95
72
150L
230 (16A)
1390 x 430 x 950
91
489704
S-36LN504FPS141
B3800B-PRO/200 FM3 2"
2.2
3
395
13.9
72
200L
230 (16A)
1450 x 550 x 980
103
489705
S-36FN541FPS145
B3800B-PRO/100 FT3 UK
2.2
3
395
13.95
72
100L
400 (10A)
1070 x 385 x 841
70
489706
S-36HN541FPS150
B3800B-PRO/150 FT3 UK
2.2
3
395
13.95
72
150L
400 (10A)
1390 x 430 x 950
91
489707
S-36LN541FPS143
B3800B-PRO/200 FT3 UK
2.2
3
395
13.95
72
200L
400 (10A)
1450 x 550 x 980
103
489708
S-36LN684FPS144
B3800B-PRO/200 FM4 2" UK
3
4
495
18
72
200L
230 (20A)
1450 x 550 x 980
91
Downloads
S-28FN504FPS140 Datasheet
S-28FN541FPS137 Datasheet
S-36HN504FPS142 Datasheet
S-36LN504FPS141 Datasheet
S-36FN541FPS145 Datasheet
S-36HN541FPS150 Datasheet
S-36LN541FPS143 Datasheet
S-36LN684FPS144 Datasheet
-
