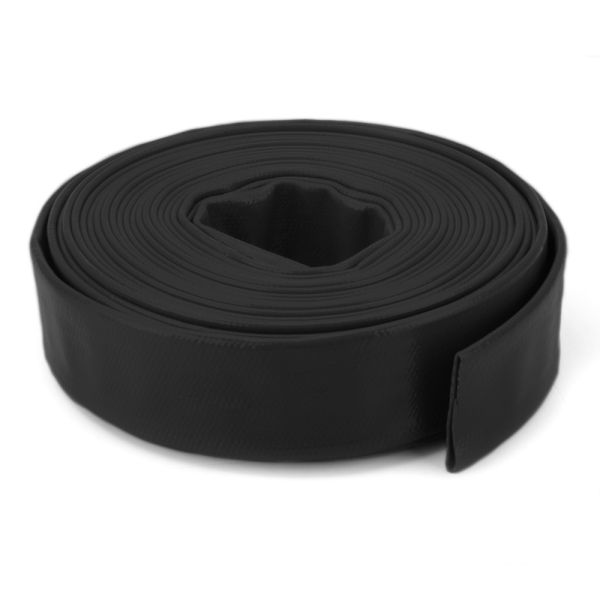

PVC Agricultural Drag Hose
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: Nitrile rubber covered PVC
- Operating temperature range: -20°C to 80°C
- Colour: Black
- Pressure rated up to 20 bar
- Available in 100m coils
- Weather, chemical and abrasion resistance
| Product Code | Internal Diameter (inch) | Wall Thickness (mm) | Max Working Pressure (bar) | Bursting Pressure (bar) | Breaking Strength (kg) | Coil Weight (kg) |
| 378361 | 2 | 3.3 | 20 | 50 | 3,900 | 60 |
| 378362 | 3 | 3.3 | 20 | 50 | 8,800 | 90 |
| 378363 | 4 | 3.5 | 20 | 50 | 12,400 | 135 |
| 378365 | 6 | 3.9 | 17 | 42 | 17,900 | 195 |
| 378366 | 10 | 5.2 | 12 | 30 | 43,200 | 420 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
This layflat PVC hose is manufactured from high tenacity polyester with a PVC lining, allowing for superior flow performance, and a high-grade black nitrile rubber cover for external protection. The special textile weave in the hose offers reinforcement for excellent protection against abrasion and mechanical damage.
Designed with an extremely high adhesion between the inner and outer layers, this industrial hose is ideally suited for irrigation, water supply, construction and civil applications.
It is suitable for use with irrigation, liquid manure handling, heavy duty water transport and waste water applications.
You may also need: lever lock couplings
