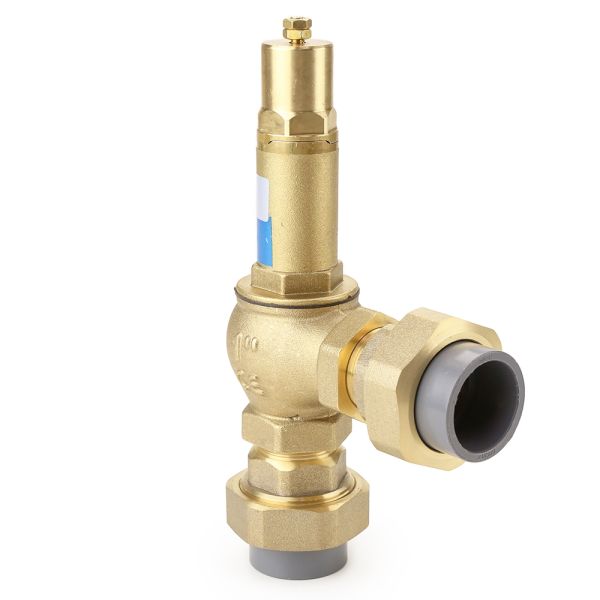

Pressure Relief Valve Brass

Pressure Relief Valve Brass

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs / Dimensions:

  • Supplied with two ABS composite unions
  • Suited for use with nominal bore ABS pipe
  • Adjustable pressure 0.5 to 10 bar
  • Working temperature 0°C - 70°C
  • For us with gas, steam and liquids
  • Suitable for use as a bypass valve
  • Complies to PED 97/23/EC
2017_06_01_15_51_41_ART_622_V2_1.pdf Number Part Name Material
1 Nut and Locknut Brass
2 Housing Cap Brass
3 Regulator Brass
4 Locknut Regulator Brass
5 Regulator Seat Brass
6 Spring Pusher Brass
7 Bonnet Brass
8 Spring Steel
9 Gasket Pressed Fibre
10 O-Ring EPDM Rubber
11 Rod Brass
12 Valve Seat Brass
13 Valve Gasket EPDM Rubber
14 Valve Nut Brass
15 Body Brass


Useful Info:

This product should not be used as a safety valve.

The composite unions are supplied unassembled. We recommend using PTFE tape when fitting them to the valve.

ABS solvent cement should be used along with cleaner to glue the plain end and the pipe together.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
Brass Pressure Relief Valve ABS Union Plain 1/2"
Code
378051
Product Name
Brass Pressure Relief Valve ABS Union Plain 1/2"
List Price
£160.73
You Pay
£61.08
You Save
62%
Qty
Brass Pressure Relief Valve ABS Union Plain 3/4"
Code
378052
Product Name
Brass Pressure Relief Valve ABS Union Plain 3/4"
List Price
£209.17
You Pay
£79.48
You Save
62%
Qty
Brass Pressure Relief Valve ABS Union Plain 1"
Code
378053
Product Name
Brass Pressure Relief Valve ABS Union Plain 1"
List Price
£278.45
You Pay
£105.81
You Save
62%
Qty
Brass Pressure Relief Valve ABS Union Plain 1 1/4"
Code
378054
Product Name
Brass Pressure Relief Valve ABS Union Plain 1 1/4"
List Price
£424.01
You Pay
£161.12
You Save
62%
Qty
Brass Pressure Relief Valve ABS Union Plain 1 1/2"
Code
378055
Product Name
Brass Pressure Relief Valve ABS Union Plain 1 1/2"
List Price
£519.52
You Pay
£197.42
You Save
62%
Qty
Brass Pressure Relief Valve ABS Union Plain 2"
Code
378056
Product Name
Brass Pressure Relief Valve ABS Union Plain 2"
List Price
£760.38
You Pay
£288.94
You Save
62%
Qty
Brass Pressure Relief Valve ABS Union Plain 2 1/2"
Code
378057
Product Name
Brass Pressure Relief Valve ABS Union Plain 2 1/2"
List Price
£1,538.34
You Pay
£584.57
You Save
62%
Qty
Brass Pressure Relief Valve ABS Union Plain 3"
Code
378058
Product Name
Brass Pressure Relief Valve ABS Union Plain 3"
List Price
£1,934.40
You Pay
£735.07
You Save
62%
Qty
8 products
