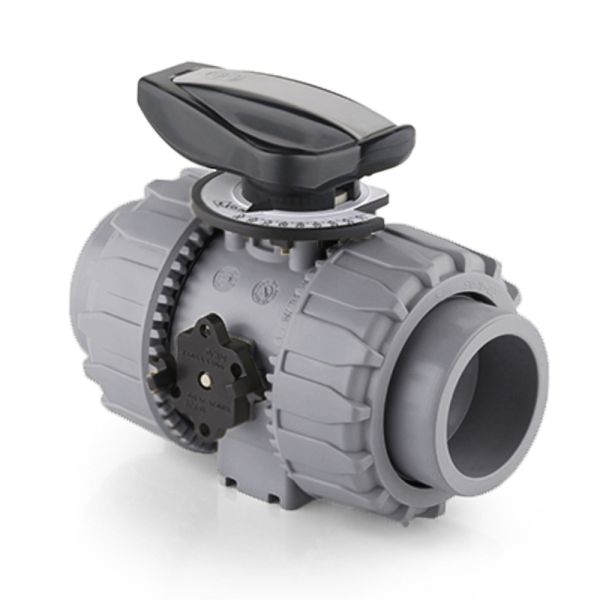

VKR Metering Ball Valve

Useful Information

VKD ball valves available in Sizes ½" to 2" available.

Ball valve body valve made from acrylonitrile butadiene styrene.

The seals in these ball valves are made from EPDM.

Maximum pressure is 16 bar.

Union Fittings allow for easy maintenance of the valve without the need for additional glueing.

Solvent Cement and Cleaner is required for joining this product with other ABS systems.



Approvals:

WRAS Approved Product - sold by Pipestock

WRAS approval 1611501 (where applicable)

DWI Approved Product - sold by Pipestock



ABS-Metering-Valve-Diagram

Product Code Nominal Size (Inch) L (mm) Z (mm) H (mm) H1 (mm) E (mm) B (mm) B1 (mm) C (mm) C1 (mm) DN PN
368860 1/2 16.5 70 103 65 54 54 295 67 40 10 16
368861 3/4 19 77 115 70 65 65 34.5 85 49 20 16
368862 1 22.5 83 128 78 73 73 39 85 49 25 16
368863 1 1/4 26 94 146 88 86 86 46 108 64 32 16
368864 1 1/2 30 104 164 91 98 98 52 108 64 40 16
368865 2 36 127 199 111 122 108 62 134 76 50 16



IMPORTANT: The technical data given in this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.


If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
368860DP ABS VKR Metering Ball Valve EPDM Plain 1/2" £223.98 30% £156.79
368861DP ABS VKR Metering Ball Valve EPDM Plain 3/4" £266.25 30% £186.38
368862DP ABS VKR Metering Ball Valve EPDM Plain 1" £317.67 30% £222.37
368863DP ABS VKR Metering Ball Valve EPDM Plain 1 1/4" £407.38 30% £285.17
368864DP ABS VKR Metering Ball Valve EPDM Plain 1 1/2" £524.78 30% £367.35
368865DP ABS VKR Metering Ball Valve EPDM Plain 2" £667.73 30% £467.41
