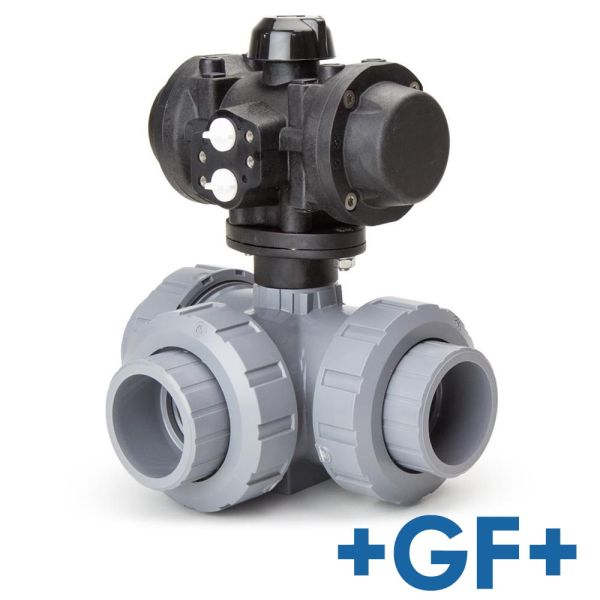

3-Way T-Port +GF+

Useful Information

Key Features / Tech Specs:

  • Valve material: acrylonitrile butadiene styrene (ABS)
  • Metric plain ends
  • Sizes: 20mm to 63mm
  • T-Port - 4 positions
  • ATEX EX112GDc approved actuator
  • Valve manufacturer: Georg Fischer
  • Actuator manufacturer: Prisma

Useful info:

Actuator:

The pneumatic actuator from Prisma offers a rotation angle from 0-90° with a working temperature between -32°C & 90°C and a maximum pilot pressure of 8 bar.

It has a Polyamide body and is SIL2 rated meaning it is free from silicon. It has double-acting torques from 17 to 165.5Nm at 6 bar.


Actuator Specification
  1/2" and 3/4" 1" to 1 1/2" 2"
Maximum Operational Torque 17Nm to 165Nm at 6 bar 17Nm to 165Nm at 6 bar 17Nm to 165Nm at 6 bar
Operating Temperature -32°C to 90°C -32°C to 90°C -32°C to 90°C
Air Supply up to 8 bar up to 8 bar up to 8 bar
Protection IP-67 IP-67 IP-67
Cycle Time w/o Resistant Torque at 6 bar 0.15secs 0.2secs 0.3secs
Rotation Angle 0° to 90° 0° to 90° 0° to 90°
Drive Type Stainless steel 8-point star Stainless steel 8-point star Stainless steel 8-point star
Star Size 11 14 17
Approvals 94-9-EC, SIL-3 94-9-EC, SIL-3 94-9-EC, SIL-3
Weight 0.55kg 1.0kg 2.03kg

IMPORTANT: Actuator appearance may differ dependant upon the size ordered.

Actuator datasheet

(Actuator Datasheet PDF)

Valves:

The 3-way valves are manufactured by Georg Fischer and offer full WRAS approval across the range.

They have an ABS body with PTFE seals and offer a maximum working pressure of 10 bar.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
392046GF ABS Pneum Act 3-Way Ball Valve T Port EPDM 25mm £365.10 30% £255.57
392047GF ABS Pneum Act 3-Way Ball Valve T Port EPDM 32mm £571.95 30% £400.37
392048GF ABS Pneum Act 3-Way Ball Valve T Port EPDM 40mm £644.12 30% £450.88
392049GF ABS Pneum Act 3-Way Ball Valve T Port EPDM 50mm £675.30 30% £472.71
392050GF ABS Pneum Act 3-Way Ball Valve T Port EPDM 63mm £863.49 30% £604.44
