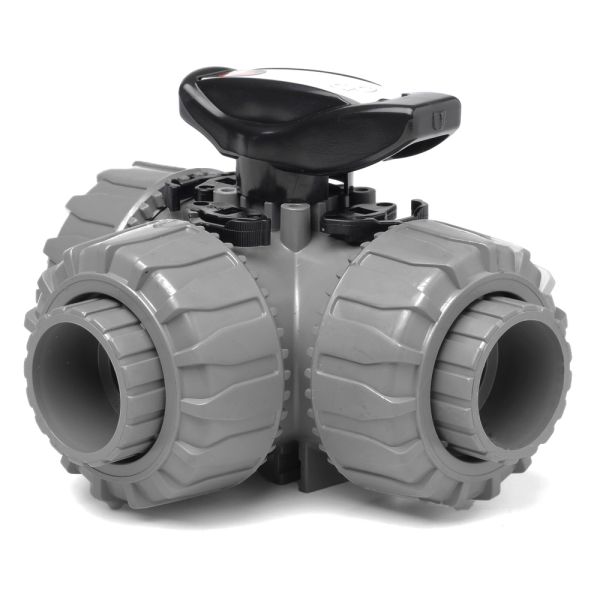

Durapipe ABS 3-Way L-Port Ball Valve EPDM Metric
Technical Specification
- Valve type: 3-way ball valve (L-port)
- Valve series: TKD DualBlock®
- Manufacturer: Durapipe
- Size range: 20mm to 63mm
- Body material: Acrylonitrile butadiene styrene (ABS)
- Seal material: EPDM (ethylene propylene diene terpolymer)
- Connection type: Metric plain ends (solvent weld with solvent cement and cleaner)
- Port configuration: L-port, 4-position
- Maximum working pressure: Up to 16 bar at 20°C
- Operation: Manual
- System: Metric ABS
Description
The TKD 3-Way Ball Valve L-Port is a versatile manual flow-diverting valve designed for use in metric ABS pipework systems. Manufactured by Durapipe, this valve forms part of the robust TKD DualBlock® range, delivering dependable performance in demanding industrial and process applications.
The L-port ball allows flow to be directed from a single inlet to one of two outlets, making it ideal for switching or selecting between flow paths. With four selectable operating positions, the valve provides precise control while also allowing a fully closed position when required.
Its fully unionised construction enables the valve body to be removed easily from the pipeline without cutting the pipe, simplifying maintenance and seal replacement. Metric plain ends are designed for solvent welding using ABS solvent cement and cleaner, ensuring a secure and fully compatible joint with ABS metric pipe and fittings.
Key Features & Benefits
- L-port configuration: Directs flow between two outlets or isolates flow completely
- Four operating positions: Flexible and controlled flow selection
- Durapipe TKD DualBlock® design: Proven reliability in industrial systems
- Fully unionised body: Simple removal for inspection or refurbishment
- EPDM seals: Suitable for water and a wide range of industrial fluids
- High pressure rating: Up to 16 bar at 20°C
- Seat Stop® system: Allows fine adjustment of ball seats without draining
- Ergonomic VKD-style handle: Integrated tool for ball seat adjustment
