ABS Full Face PN10/16
Technical Specification
- Material: Acrylonitrile butadiene styrene (ABS)
- Colour: Light grey
- Size range: 3/4" to 4"
- Connection type: Full face ABS flange drilled to PN10/PN16 (BS EN 1092-1)
- Joining method: Solvent cement with ABS cleaner for bonding to pipe
- Approvals: WRAS approval 1703070 where applicable, BSI Kitemark KM60042
- Temperature range: -40°C to 60°C
- Standards: BS EN 1092-1, PN16 and PN10 drilling patterns, BS 5391, BS 5392, EN 10226 1, DIN 2999, DIN DVS 2204 3
- Chemical resistance: Suitable for diluted inorganic acids, salts, animal fats, oils and organic acids, not compatible with petrol, alcohol, organic solvents or vegetable oils
- Applications: Connecting ABS pipework to valves, pumps, tanks, equipment or flanged fittings
Description
This ABS full face flange provides a robust and secure method for creating bolted connections between ABS pipework and flanged equipment such as valves, tanks or other system components. Designed to BS EN 1092-1 PN16 and compatible with PN10 drilling patterns, it offers flexibility across a wide range of industrial installations. The plain rear face is bonded to ABS pipe using solvent cement and cleaner, forming a permanent and reliable attachment. Once installed, the full face design ensures even gasket compression, supporting a strong and consistent seal. Manufactured from durable ABS, the flange delivers excellent corrosion resistance, impact strength and dependable performance across its working temperature range.
Key Features & Benefits
- Full face design: Ensures uniform gasket compression for a reliable seal
- Dual drilling compatibility: Matches BS EN 1092-1 PN16 and PN10 bolt patterns
- Strong solvent weld connection: Bonds securely to ABS pipe for long-term performance
- Corrosion-free construction: Ideal for water treatment and chemical processing environments
- Durable ABS material: Lightweight, rigid and resistant to impact
- WRAS and Kitemark approved: Quality tested for safe use in regulated installations
- Versatile application: Suitable for valves, pumps, tanks and flanged equipment interfaces

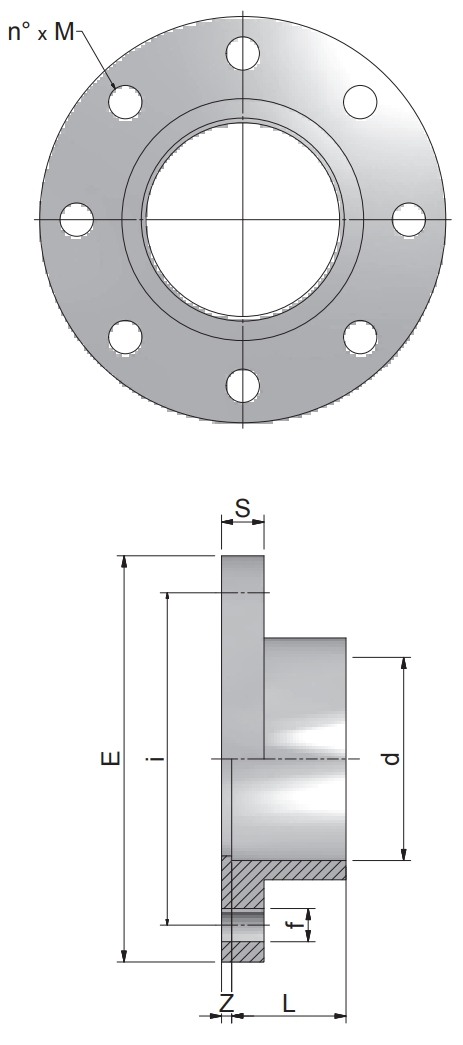

| SKU | Nominal Size / d (inch) | L (mm) | S (mm) | i (mm) | f (mm) | Z (mm) | E (mm) | n° x M |
| 359998 | 3/4 | 19 | 12 | 75 | 14 | 4.5 | 105 | 4 x M12 |
| 353109 | 1 | 22 | 14 | 85 | 14 | 4.5 | 115 | 4 x M12 |
| 353110 | 1 1/4 | 26 | 15 | 100 | 18 | 4.5 | 142 | 4 x M16 |
| 353111 | 1 1/2 | 32 | 16 | 110 | 18 | 4.5 | 152 | 4 x M16 |
| 353112 | 2 | 38 | 20 | 125 | 18 | 5 | 165 | 4 x M16 |
| 359999 | 2 1/2 | 44 | 19 | 145 | 18 | 6 | 185 | 4 x M16 |
| 353113 | 3 | 51 | 22 | 160 | 18 | 7 | 200 | 8 x M16 |
| 353114 | 4 | 63 | 23 | 180 | 18 | 8 | 220 | 8 x M16 |
