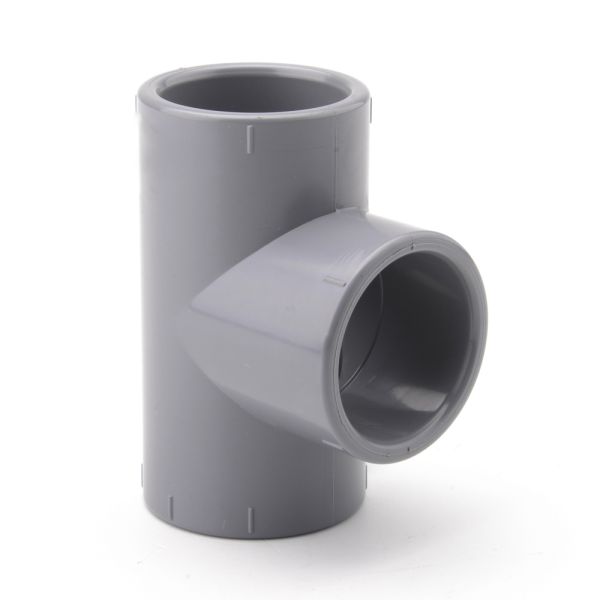

ABS Metric Tee 90° Plain

Skip to the beginning of the images gallery

Useful Information

Our ABS metric Tee 90° plain fittings are available in sizes 16mm to 315mm.

Fitting body made from acrylonitrile butadiene styrene (ABS).

Used to join together three pieces of ABS metric pipe of the same dimensions in a run of pipework allowing a branching run at an angle of 90°. ABS solvent cement should be used along with cleaner to glue the pipe together.

Approvals:

WRAS approval 1703070 (where applicable)

ABS-Tee-90-Diagram

Product Code	Nominal Size (mm)	A (mm)	B (mm)	C (mm)	Z₁ (mm)	PN
369064	16	21	47	25	10	10
369065	20	25	57	30	12	10
369066	25	31	67	34	15	10
369067	32	40	81	43	18	10
369068	40	50	99	50	23	10
369069	50	62	119	62	28	10
369070	63	78	146	70	34	10
369071	75	90	172	87	36	10
369072	90	112	205	104	46	10
369073	110	132	248	128	60	10
369074	125	154	276	143	67	10
369075	140	172	307	153	72	10
369076	160	191	343	172	86	10
369077	200	237	413	206	101	10
369078	225	262	482	240	120	10
369079	250	286	518	259	128	10
369080	315	360	652	326	162	8

IMPORTANT: The technical data given in this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.

More Info

Grouped product items
Code	Product Name	List Price	You Save	You Pay
369064	DP ABS Tee 90 Plain 16mm	£6.17	30%	£4.32
369065	DP ABS Tee 90 Plain 20mm	£7.37	30%	£5.16
369066	DP ABS Tee 90 Plain 25mm	£10.24	30%	£7.17
369067	DP ABS Tee 90 Plain 32mm	£14.11	30%	£9.88
369068	DP ABS Tee 90 Plain 40mm	£20.34	30%	£14.23
369069	DP ABS Tee 90 Plain 50mm	£29.80	30%	£20.86
369070	DP ABS Tee 90 Plain 63mm	£45.58	30%	£31.91
369071	DP ABS Tee 90 Plain 2 1/2" or 75mm	£78.93	30%	£55.25
369072	DP ABS Tee 90 Plain 90mm	£132.97	30%	£93.08
369073	DP ABS Tee 90 Plain 110mm	£195.26	30%	£136.68
369074	DP ABS Tee 90 Plain 125mm	£386.72	30%	£270.71
369075	DP ABS Tee 90 Plain 5" or 140mm	£518.55	30%	£362.98
369076	DP ABS Tee 90 Plain 160mm	£682.35	30%	£477.65
369077	DP ABS Tee 90 Plain 200mm	£1,006.52	30%	£704.57
369078	DP ABS Tee 90 Plain 225mm	£1,023.59	30%	£716.51
369079	DP ABS Tee 90 Plain 250mm	£1,435.16	30%	£1,004.61
369080	DP ABS Tee 90 Plain 315mm	£2,134.11	30%	£1,493.88
