Saddle Clips

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs:

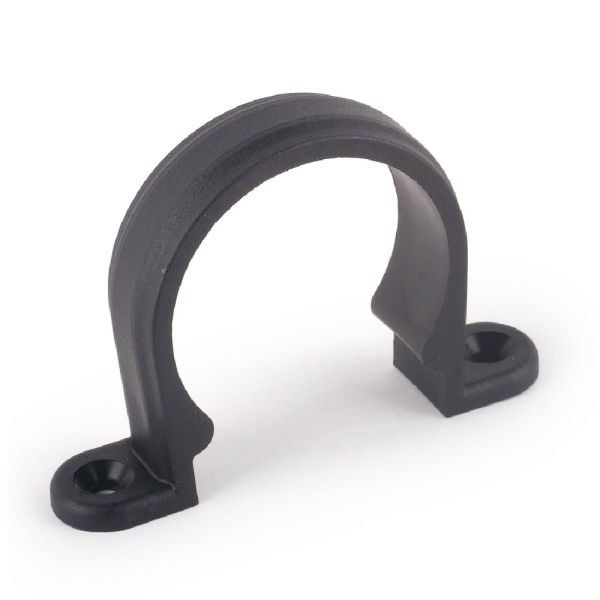

  • Cobra Pipe Clip
  • Material: Black polypropylene
  • Sizes: 16mm to 110mm (⅜" to 4")

DP saddle clip diagram

Product Code Nominal Size (mm) C (mm) E (mm) F (mm) G (mm)
367691 16 13 37 - 14
367692 20 18 41 - 14
367693 25 21 45 - 16
367694 32 23 56 - 16
367695 40 29 65 - 16
367696 50 34 67 - 16
367697 63 38 87 - 22
367698 90 50 122 8 34
367699 110 65 156 13 38



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

Useful Info:

Can be used for both metric and imperial size systems.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
367691DP Saddle Clip 16mm or 3/8" £1.00 30% £0.70
367692DP Saddle Clip 20mm or 1/2" £1.10 30% £0.77
367693DP Saddle Clip 25mm or 3/4" £1.40 30% £0.98
367694DP Saddle Clip 32mm or 1" £1.77 30% £1.24
367695DP Saddle Clip 40mm or 1 1/4" £1.91 30% £1.34
367696DP Saddle Clip 50mm or 1 1/2" £2.37 30% £1.66
367697DP Saddle Clip 63mm or 2" £3.62 30% £2.53
367698DP Saddle Clip 90mm or 3" £7.90 30% £5.53
367699DP Saddle Clip 110mm or 4" £9.49 30% £6.64
