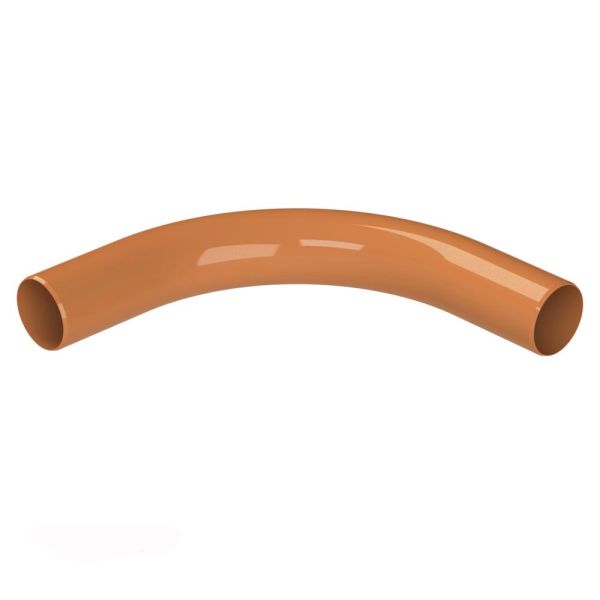

PVCu Underground Drainage Long Radius Bend
Useful Information
Technical Specification
- Material: PVCu
- Colour: Terracotta (system match)
- Diameters Available: 110 - 160 mm (system range)
- Angles Available: 87.5°, 45°, 22.5° & 11.25°
- Jointing: Push‑fit ring seal & snap‑cap system
- Standards & Approvals: BS EN 1401; BS 4660:2000 (where applicable)
- Manufactured: United Kingdom
- Radius: Long radius
Description
Long‑radius bend minimises head loss and reduces blockage risk on changes in direction. Ideal where smoother hydraulic performance or easier rodding is required.
Manufactured in the UK, the system uses PVCu for strength, durability and simple handling in trench conditions. The innovative push‑fit seal and snap‑cap design speeds installation, reduces fittings on site and helps maintain watertight performance. Traditional terracotta colouring provides a consistent finish across pipes, bends, branches and ancillaries.
Key Features & Benefits
- Extended radius improves flow and access
- Push‑fit ring‑seal connection
- Robust PVCu resists ground conditions
- Terracotta colour to match system
| SKU | Supplier Code | Size (mm) | Angle (°) | Length (mm) | Weight (kg) |
| 489990 | UG471 | 110 | 87.5 | 530 | 1.6 |
| 489991 | UG671 | 160 | 87.5 | 1600 | 5.86 |
| 489992 | UG472 | 110 | 45 | 630 | 1.3 |
| 489993 | UG672 | 160 | 45 | 1010 | 3.22 |
| 489994 | UG473 | 110 | 22.5 | 855 | 1.54 |
| 489995 | UG474 | 110 | 11.25 | 860 | 1.56 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
