Spigots PTFE
Useful Information
Key Features / Tech Specs / Dimensions:
- Material: Polypropylene
- Diaphragm valve spigot with PTFE seal
- Pressure rated to 10 bar
- Temperature range 0°C to 80°C
- Manufactured to DIN 3442
- Available in sizes from 20mm to 63mm

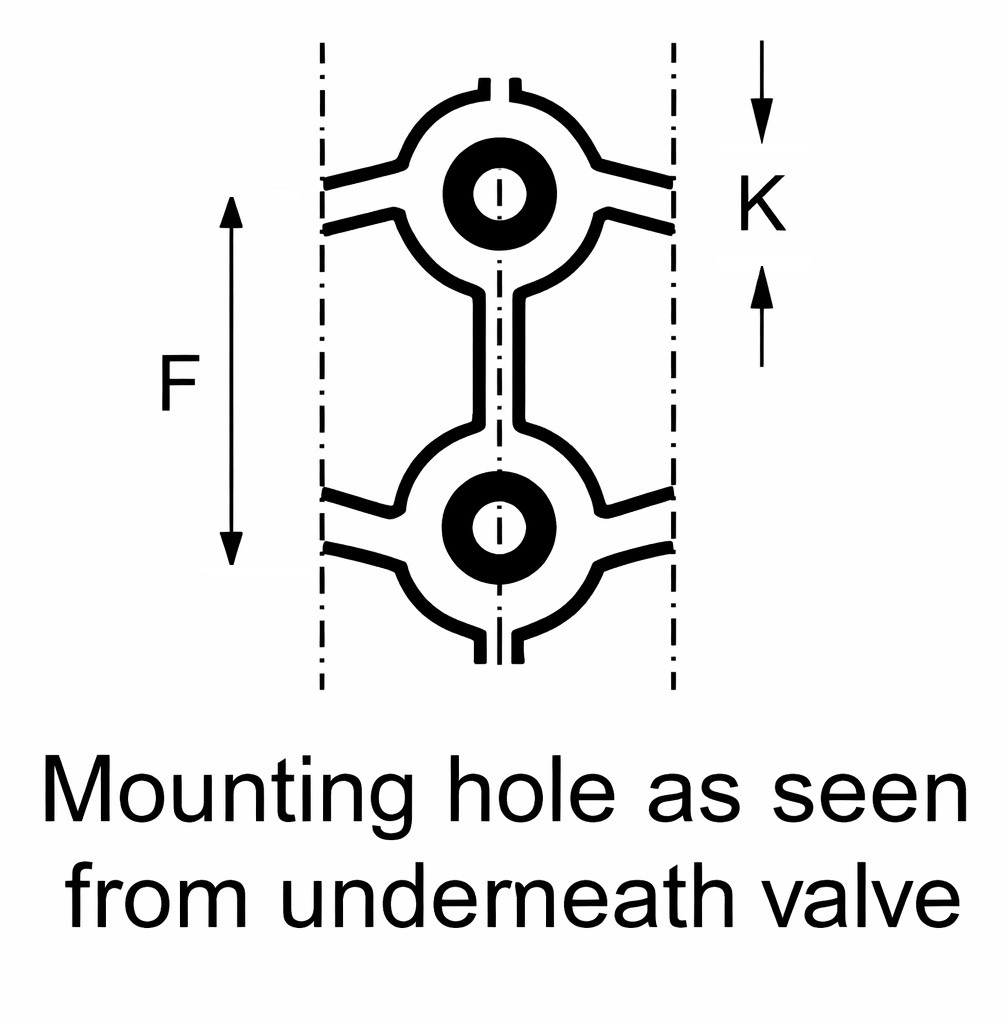

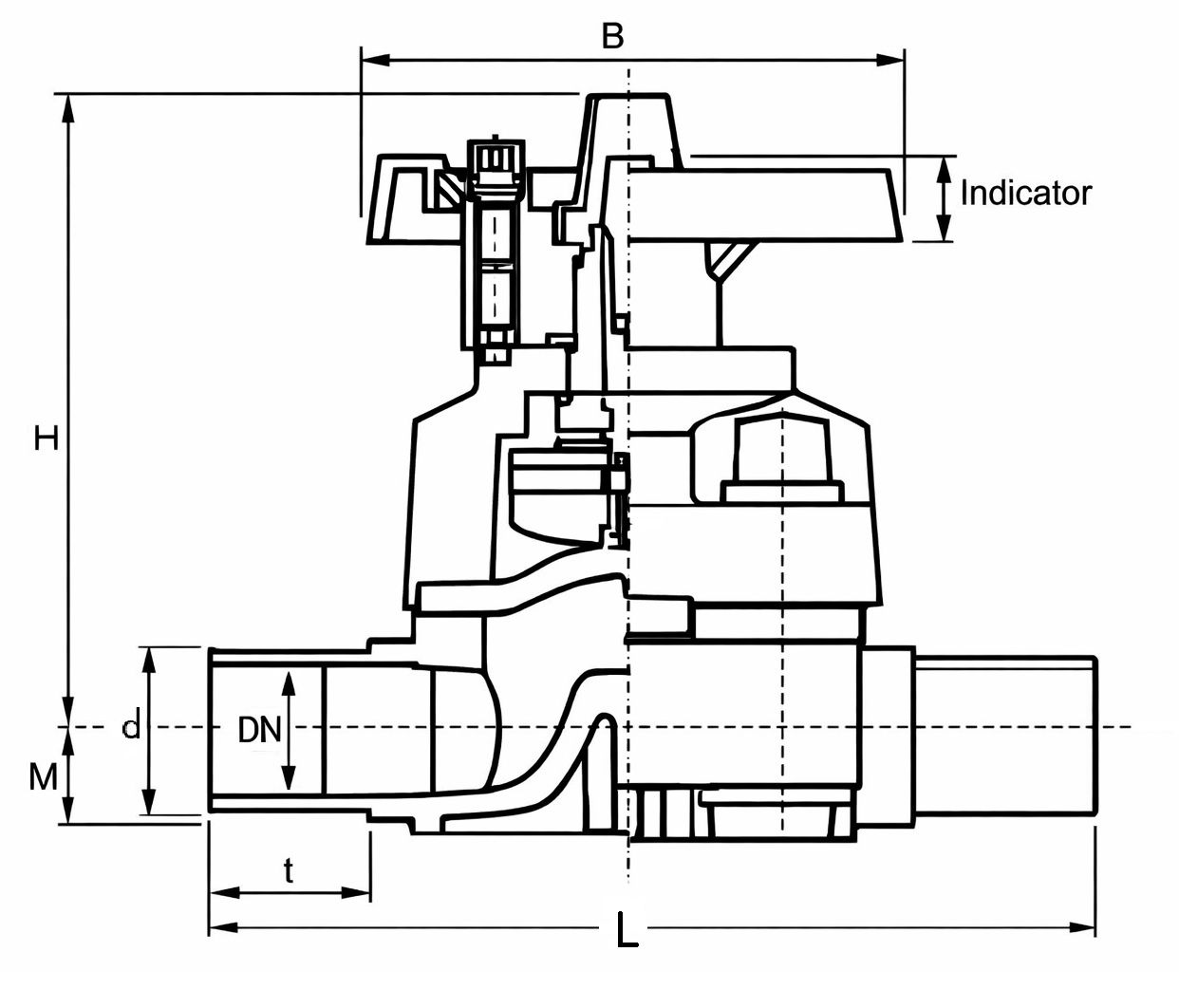

| Product Code | d (mm) | DN (mm) | Kv 100 I/m Δ = 1 bar | M (mm) | H (mm) | B (mm) | F (mm) | Lift (mm) | K (mm) | L (mm) | t (mm) | Pressure rating (bar) |
| 355605 | 20 | 15 | 72 | 17 | 100 | 86 | 25 | 9 | M6 | 124 | 29 | 10 |
| 355606 | 25 | 20 | 93 | 17 | 100 | 86 | 25 | 9 | M6 | 144 | 36 | 10 |
| 355607 | 32 | 25 | 221 | 20 | 107 | 86 | 25 | 11 | M6 | 154 | 36 | 10 |
| 355608 | 40 | 32 | 450 | 32 | 144 | 136 | 44 | 22 | M8 | 174 | 39 | 10 |
| 355609 | 50 | 40 | 500 | 32 | 144 | 136 | 44 | 22 | M8 | 194 | 46 | 10 |
| 355610 | 63 | 50 | 875 | 39 | 170 | 136 | 44 | 28 | M8 | 224 | 46 | 10 |
Useful Info:
Suitable for controlling flow of fluids in various applications.
Can connect to a pph pipe or fitting with female ends.
Applications of use with these pph diaphragm valves include acid transportation, alkali transportation, chemical processing, industrial waste treatment, use in pharmaceutical industries, biotechnology industries, hospital and laboratory applications, water treatment, brewing and distilling electronics, food industries and nuclear industries.
