Spigots EPDM

Spigots EPDM

Click on the image to activate zoom.

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs / Dimensions:

  • Material: Polypropylene
  • Diaphragm valve spigot with EPDM seal
  • Pressure rated to 10 bar
  • Temperature range 0°C to 80°C
  • Manufactured to DIN 3442
  • Available in sizes from 20mm to 63mm

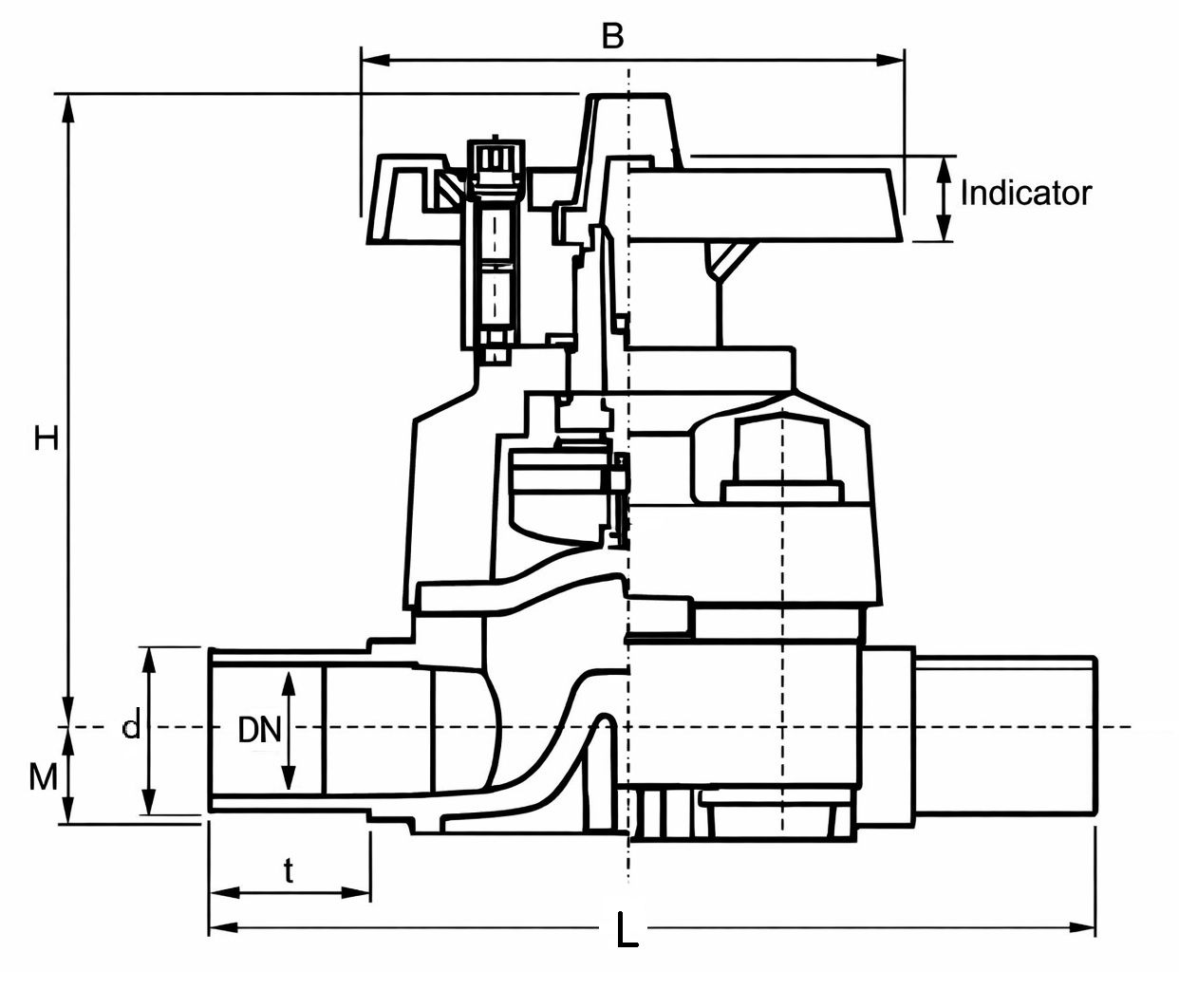

pph diaphragm valve spigot diagram



Product Code d (mm) DN (mm) Kv 100 I/m Δ = 1 bar M (mm) H (mm) B (mm) F (mm) Lift (mm) K (mm) L (mm) t (mm) Pressure rating (bar)
355599 20 15 72 17 100 86 25 9 M6 124 29 10
355600 25 20 93 17 100 86 25 9 M6 144 36 10
355601 32 25 221 20 107 86 25 11 M6 154 36 10
355602 40 32 450 32 144 136 44 22 M8 174 39 10
355603 50 40 500 32 144 136 44 22 M8 194 46 10
355604 63 50 875 39 170 136 44 28 M8 224 46 10



Useful Info:

Suitable for controlling flow of fluids in various applications.

Can connect to a pph pipe or fitting with female ends.

Applications of use with these pph diaphragm valves include acid transportation, alkali transportation, chemical processing, industrial waste treatment, use in pharmaceutical industries, biotechnology industries, hospital and laboratory applications, water treatment, brewing and distilling electronics, food industries and nuclear industries.



pph diaphragm valve flow characteristics diagram



pph diaphragm valve flow pressure diagram



pph diaphragm valve flow temperature diagram



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.



If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

More Info Close
Code
Product Name
List Price
You Pay
You Save
Quantity
PP Diaphragm Valve Spigots EPDM 20mm
Code
355599
Product Name
PP Diaphragm Valve Spigots EPDM 20mm
List Price
£86.99
You Pay
£69.59
You Save
20%
Qty
PP Diaphragm Valve Spigots EPDM 25mm
Code
355600
Product Name
PP Diaphragm Valve Spigots EPDM 25mm
List Price
£96.65
You Pay
£77.32
You Save
20%
Qty
PP Diaphragm Valve Spigots EPDM 32mm
Code
355601
Product Name
PP Diaphragm Valve Spigots EPDM 32mm
List Price
£120.55
You Pay
£96.44
You Save
20%
Qty
PP Diaphragm Valve Spigots EPDM 40mm
Code
355602
Product Name
PP Diaphragm Valve Spigots EPDM 40mm
List Price
£144.68
You Pay
£115.74
You Save
20%
Qty
PP Diaphragm Valve Spigots EPDM 50mm
Code
355603
Product Name
PP Diaphragm Valve Spigots EPDM 50mm
List Price
£187.40
You Pay
£149.92
You Save
20%
Qty
PP Diaphragm Valve Spigots EPDM 63mm
Code
355604
Product Name
PP Diaphragm Valve Spigots EPDM 63mm
List Price
£238.90
You Pay
£191.12
You Save
20%
Qty
6 products
