BSP EPDM
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: polypropylene

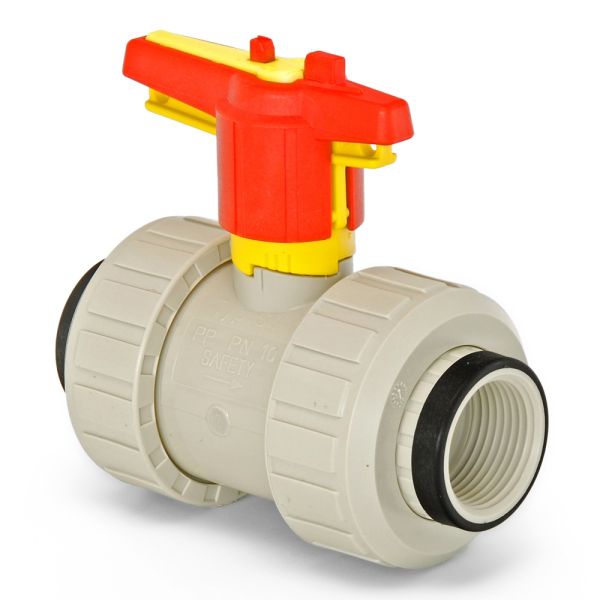

- Ball Valve EPDM BSP Threaded
- Pressure rated to: sizes 1/2" - 2" 10 bar, and 3" 6 bar
- Manufactured to DIN 3442 and DIN 3230
- Available in sizes from 1/2" to 3"

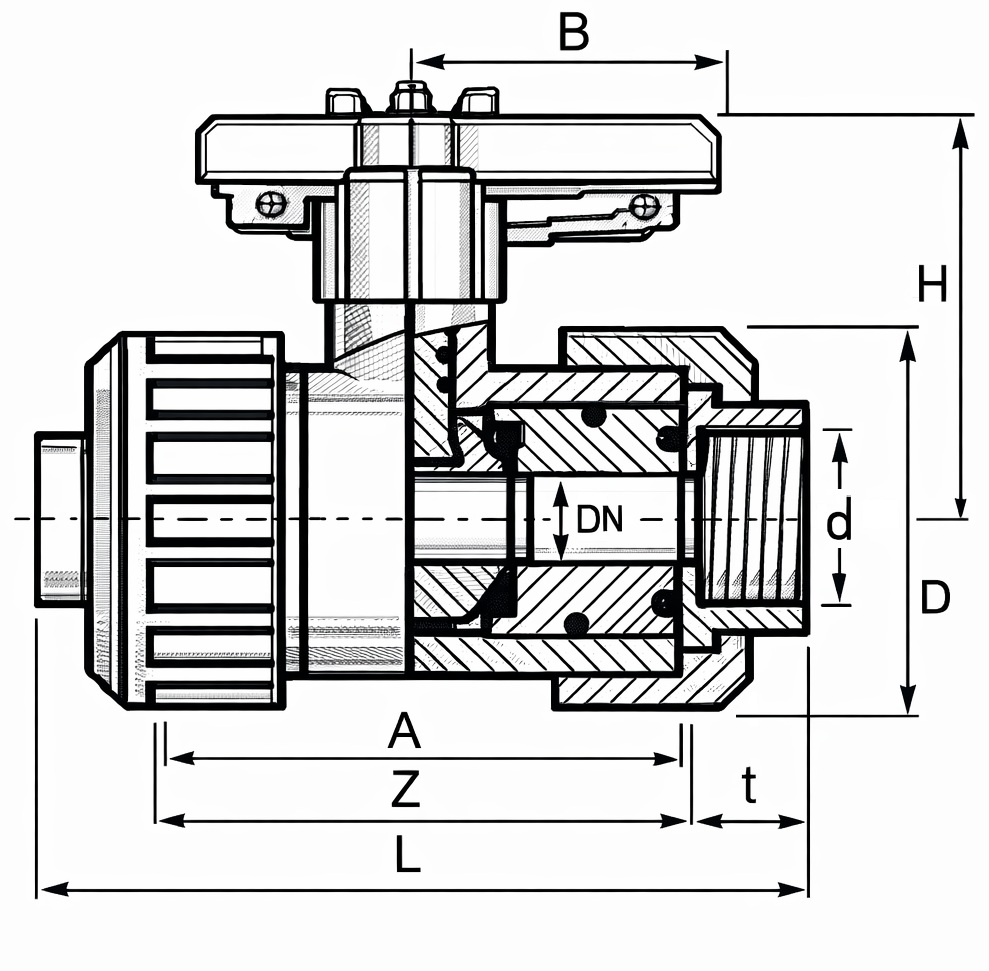

| Product Code | n.b. (inch) | DN (mm) | L (mm) | Pressure Rating (bar) |
| 355455 | ½ | 15 | 100 | 10 |
| 355456 | ¾ | 20 | 113 | 10 |
| 355457 | 1 | 25 | 124 | 10 |
| 355458 | 1 ¼ | 32 | 140 | 10 |
| 355459 | 1 ½ | 40 | 164 | 10 |
| 355460 | 2 | 50 | 192 | 10 |
| 355461 | 3 | 80 | 286 | 10 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
These threaded pph ball valves are ideal for use in polypropylene pipe systems including: acid transportation, alkali transportation, chemical processing, industrial waste treatment, use in pharmaceutical industries, biotechnology industries, hospital and laboratory applications, water treatment, brewing and distilling electronics, food industries, nuclear industries and for the conveyance of effluents.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
