Plain FPM
Useful Information
Key Features / Tech Specs & Dimensions:
- Material: polypropylene

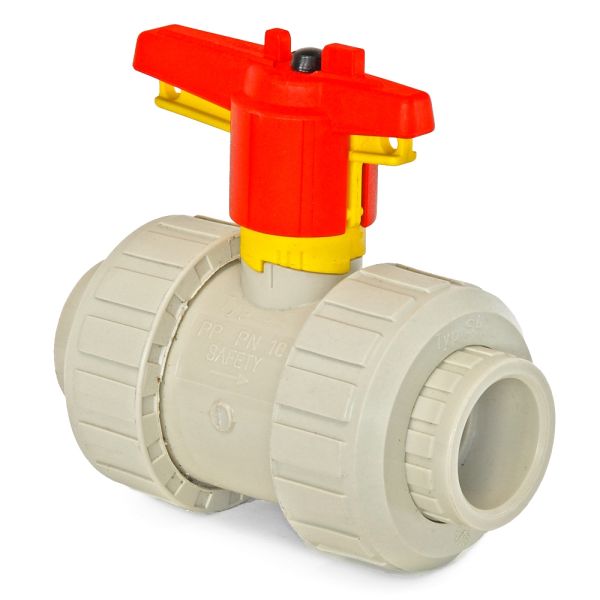

- Ball Valve FPM Plain
- Pressure rated to: sizes 20mm - 75mm 10 bar, and 90mm to 110mm 6 bar
- Manufactured to DIN 3442 and DIN 3230
- Available in sizes from 20mm to 110mm
| Product Code | d (mm) | DN (mm) | L (mm) | Pressure Rating (bar) |
| 355496 | 20 | 15 | 100 | 10 |
| 355497 | 25 | 20 | 113 | 56 |
| 355498 | 32 | 25 | 124 | 10 |
| 355499 | 40 | 32 | 140 | 10 |
| 355500 | 50 | 40 | 164 | 10 |
| 355501 | 63 | 50 | 192 | 10 |
| 355502 | 75 | 65 | 232 | 10 |
| 355503 | 90 | 80 | 286 | 6 |
| 355504 | 110 | 80 | 295 | 6 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
Used to regulate and direct flow within a pipe system.
These pph ball valves are true union designed, enabling installation or servicing without disturbing pipeline.
They are suitable for pressure pipelines and drainage of hazardous fluids.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
