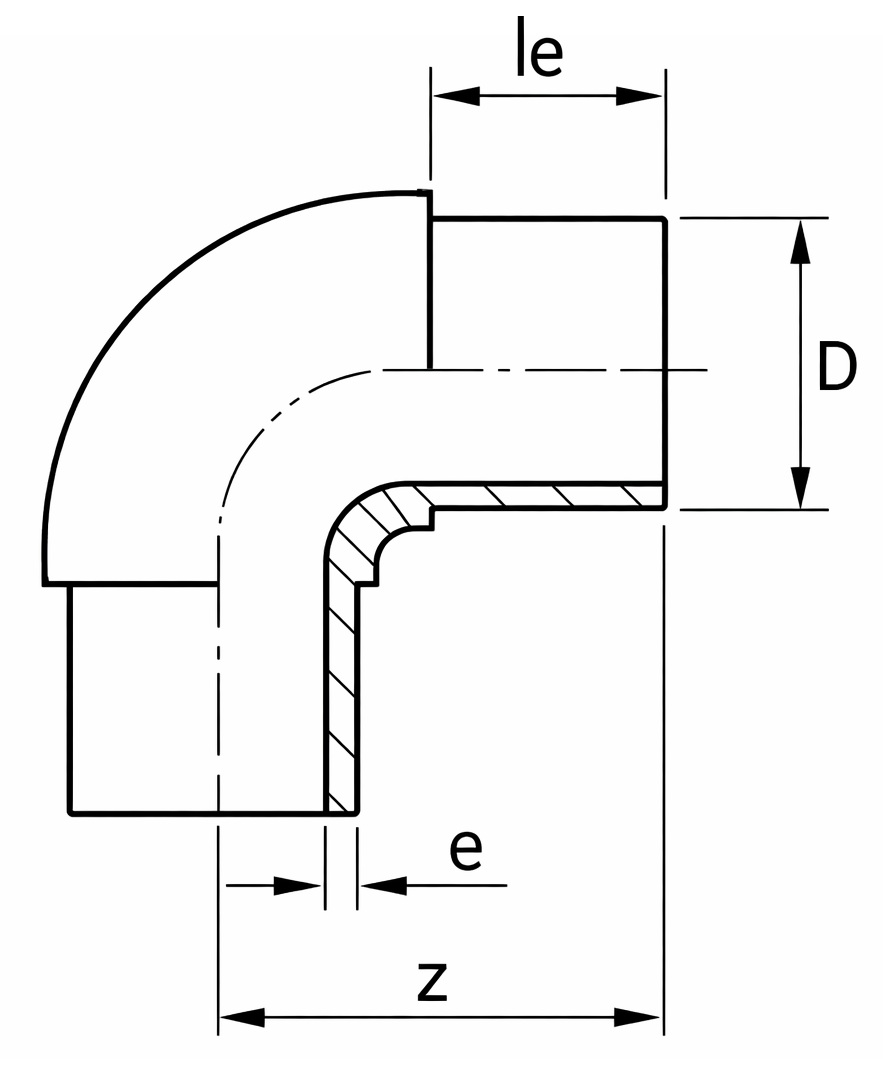

PP Electro-Fusion Long Elbow 90

• Material (≤ 225mm): Polypropylene Homopolymer (PP-H)
• Material (≥ 250mm): Polypropylene Random Copolymer (PP-R)
• Working pressure: 10 bar
• Jointing method: Electrofusion / butt welding
• Bend angle: 90°
• Application approval: Water use only
• Standards: DIN 16962 (Parts 5/6/7/8/9/12), ISO 7279:1984, ISO 15494:2003 Type B
• Operating temperature range: -20°C to 120°C

The PP Electro-Fusion Long Elbow 90 is designed to introduce a precise 90° change of direction within polypropylene pipe systems while maintaining joint integrity and long-term reliability. Manufactured from high-quality polypropylene, the elbow uses PP-H for sizes up to 225mm and PP-R for 250mm and above, ensuring optimum performance across the full size range.

This fitting features an integrated electric heating element embedded within the elbow body. When the specified voltage is applied, the heating coils melt both the internal surface of the fitting and the external pipe wall, fusing them together to create a homogenous, leak-free joint. The profiled fitting body helps distribute stresses evenly around the bend, which is particularly important in directional changes where mechanical loads are higher.

Electrofusion elbows are widely used where consistent weld quality, strength and repeatability are required, especially in applications where access or alignment may be more challenging.

• Electrofusion jointing: Produces a strong, permanent welded connection
• Profiled elbow body: Spreads stresses evenly through the joint and bend
• Material matched by size: PP-H up to 225mm, PP-R from 250mm upwards
• Smooth bore design: Minimises pressure loss through the 90° change of direction
• Corrosion resistant: Suitable for aggressive and chemically demanding environments
• Lightweight construction: Easier handling and installation compared with metal alternatives
