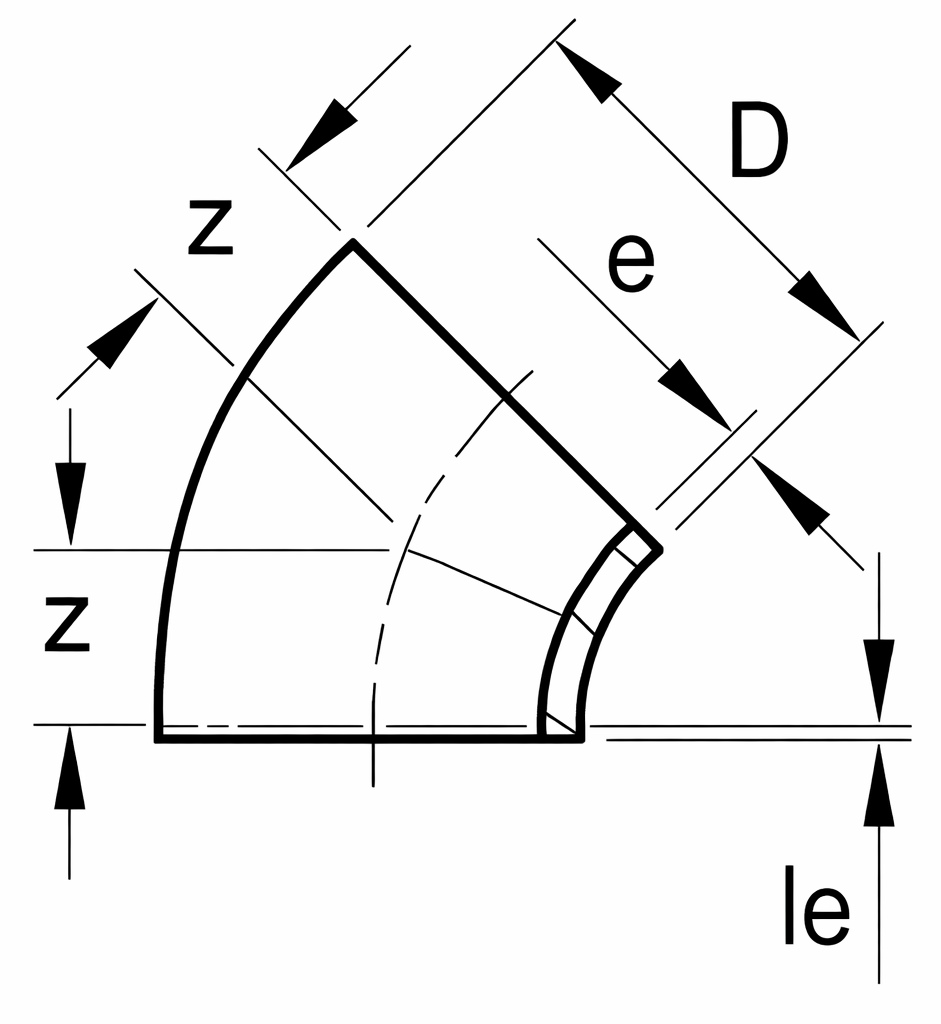

PP Butt Fusion Bend 45 10 Bar

• Material:
  • Polypropylene Homopolymer (PP-H) up to 225 mm
  • Polypropylene Random Copolymer (PP-R) 250 mm and above
• Jointing method: Butt fusion (butt welding)
• Angle: 45° bend
• Pressure rating: 10 bar
• Application approval: Water use only
• Standards: DIN 16962 Parts 5/6/7/8/9/12
• Operating temperature range: -20°C to 120°C

The PP Butt Fusion 45° Bend - 10 Bar is engineered for installations where higher working pressures are required without compromising flow efficiency. Retaining the smooth hydraulic characteristics of a 45° change in direction, this fitting significantly reduces turbulence and pressure loss compared to tighter-radius bends.

With its increased 10 bar pressure rating, this version is ideal for more demanding water and industrial process systems. When installed using butt fusion welding, the bend forms a fully homogeneous joint with the pipe, delivering exceptional strength, long-term reliability and resistance to leakage.

• Enhanced pressure capability: Rated to 10 bar, suitable for higher-duty applications
• Efficient flow path: 45° geometry minimises head loss and system stress
• Homogeneous butt-welded joint: No seals or gaskets; joint strength comparable to the pipe itself
• Profiled fitting body: Designed to distribute stresses evenly under pressure
• Excellent chemical resistance: Well suited to aggressive fluids and industrial environments
