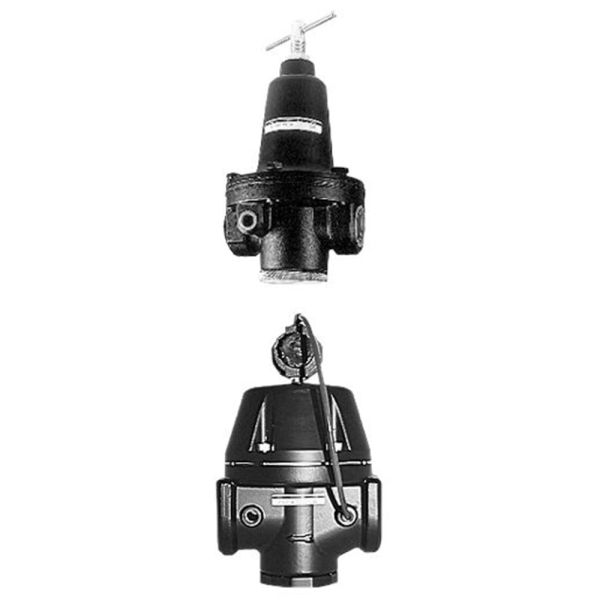

MAX Regulator
Useful Information

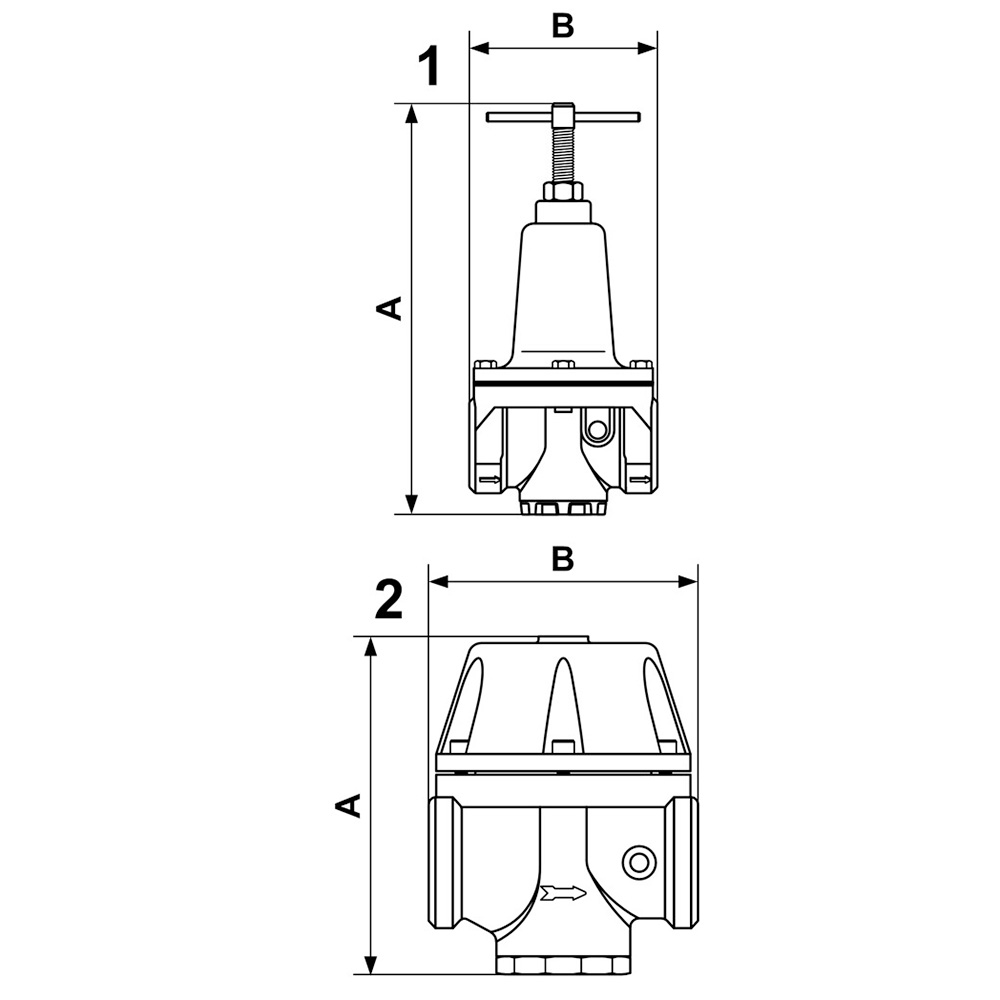

Key Features / Tech Specs / Dimensions:
- Manufacturer: Prevost
- Material: ZAMAK Alloy
- Temperature: +0°C to +70°C
- Equipped With Manual Drain
- Filtration: 40µm
| Product Code | A (mm) | B (mm) | Operating Pressure | Flow rate (l/min at 7 bar ΔP : 1bar) |
| 408347 | 273 | 127 |
12bar(In) 0-9bar(Out) |
10000 |
| 408348 | 273 | 127 |
12bar(In) 0-9bar(Out) |
12000 |
| 408349 | 225 | 180 |
12bar(In) 0-9bar(Out) |
42000 |
| 408350 | 225 | 180 |
12bar(In) 0-9bar(Out) |
44000 |
