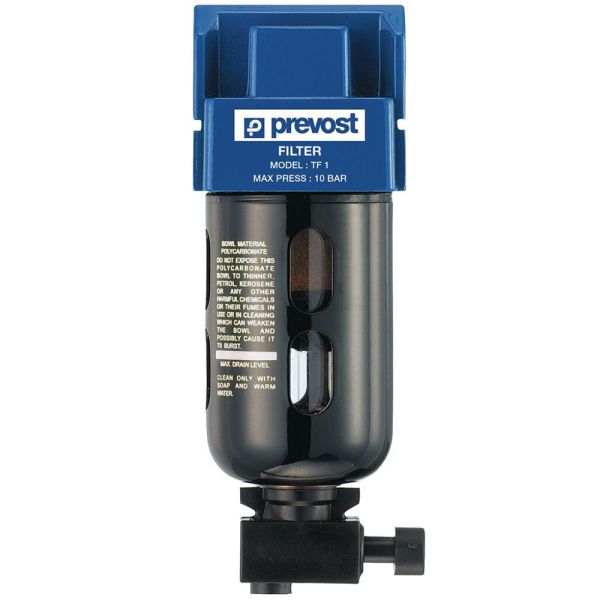

The PV Female Filter is a compact, high-performance inline filter designed for compressed air. Constructed from aluminium with a polycarbonate bowl, it operates reliably across a temperature range of 5 °C to 50 °C and withstands pressures up to 12 bar. Includes a manual drain for easy maintenance. Ideal for protecting downstream components and ensuring system purity.
Key Features & Benefits
Equipped with a manual drain
SKU

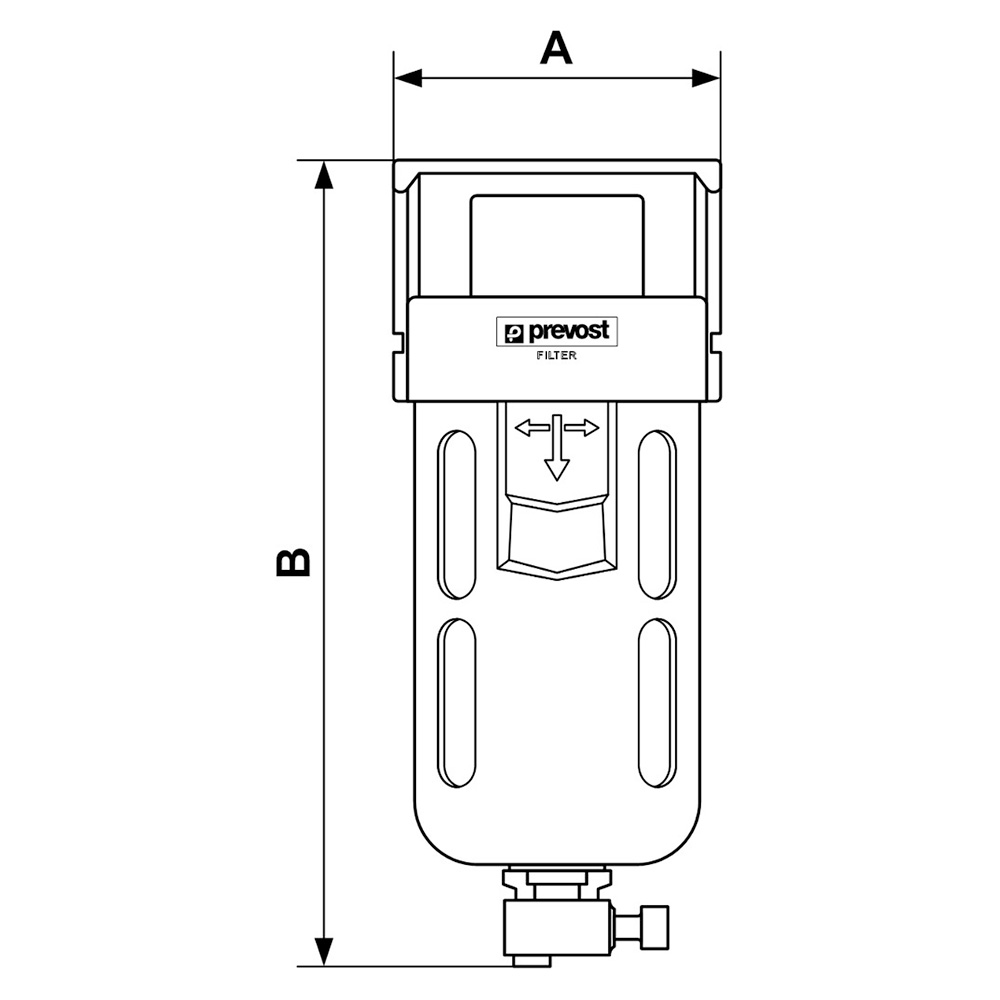

A (mm)
B (mm)
Female Thread (inch)
Flow Rate (l/min at 7 bar ΔP : 1bar)
408294
70
172
1/2
3500
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
