Complete Portable Kit For 20/30kg Grease Drums
Useful Information
Key Features / Tech Specs / Dimensions:
- Manufacturer: Prevost
- Technology: Piston dual action
- Outlet pressure: 406 bar (air pressure at 7 bar)
- Operating pressure: 3 to 7 bar
- Pressure ratio: 58:1
- Flow rate: 900 g/min (for air pressure 6 bar)
- BSPP male thread Grease outlet: G 1/4
- BSPP female thread Air inlet: G 1/4
| Product Code | Includes |
| 409432 | - pump for 20/30 kg drum - tube length: 470 mm - cover + sealing diaphragm - distribution gun - 6 m rubber hose |
| 409433 | Complete portable kit for 20/30 kg grease drums with FRL |
| 409434 | Complete kit for 20/30 kg grease drums with FRL and transport cart |

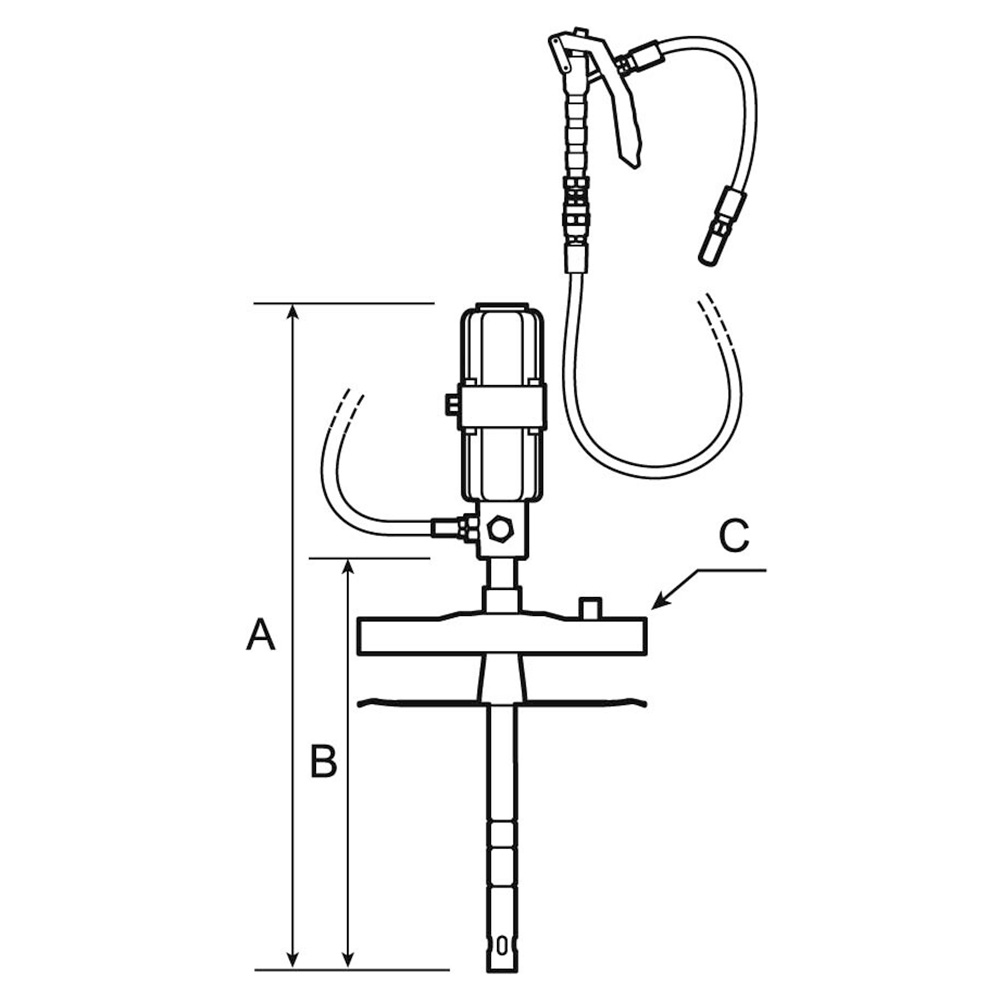

| Product Code | A (mm) | B (mm) | C (mm) |
| 409432 | 740 | 470 | 320 |
| 409433 | 740 | 470 | 320 |
| 409434 | 740 | 470 | 320 |
