Sealed LUB'Air Assembly With Several Profiles
Useful Information
Key Features / Tech Specs / Dimensions:
- Manufacturer: Prevost
| Product Code | Description | Adaptor |
| 409292 | European 7.4mm | ERC 07 |
| 409293 | ISO 6150B | IRC 06 |
| 409294 | ISO 6150B | IRC 08 |
| 409295 | - | Inline Oiler |
| 409296 | 1/4 Inlet and Outlet | - |

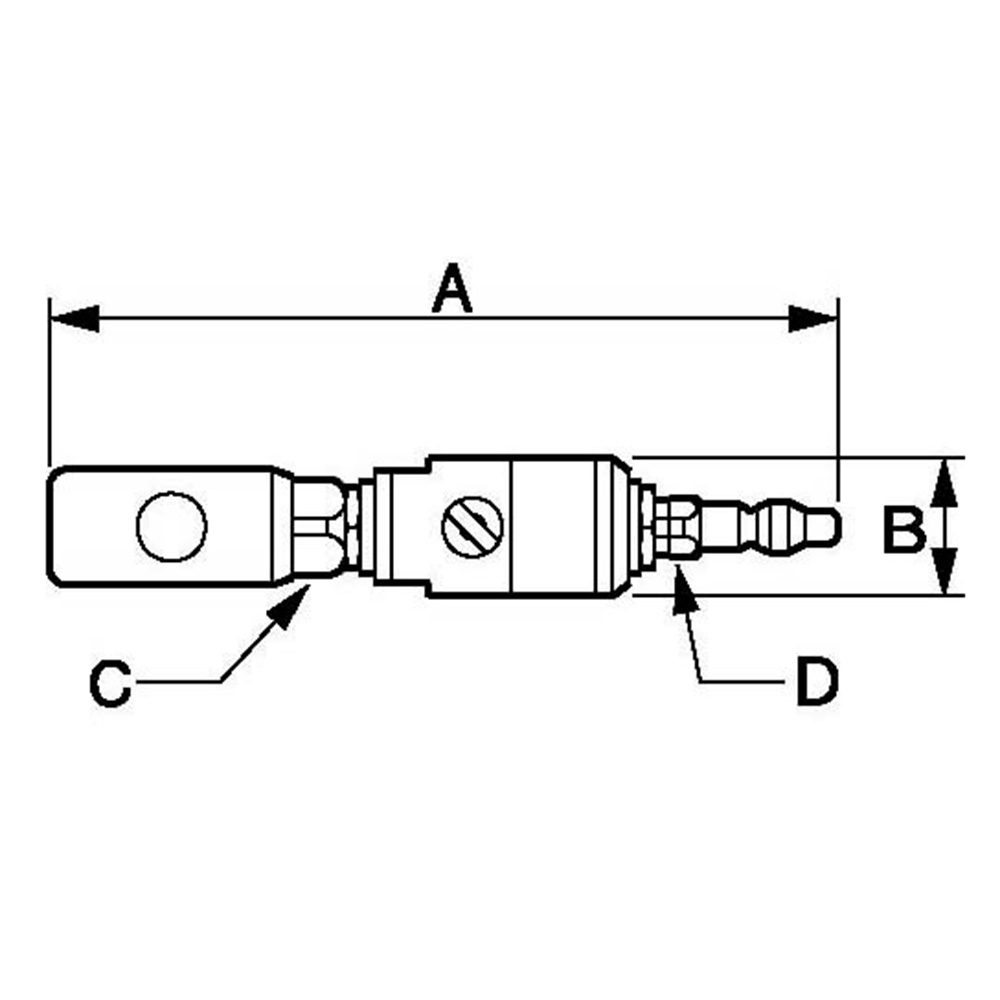

| Product Code | A (mm) | B (mm) | C (mm) | D (MM) |
| 409292 | 163 | 33 | 23 | 14 |
| 409293 | 151 | 33 | 23 | 14 |
| 409294 | 183 | 33 | 25 | 17 |
| 409295 | 68 | 33 | 19 | - |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
