Operating Temperature: 0-100°C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar/ 1600kPa (For cold and hot potable water)
Seal Rings: CIIR black seal ring (up to 54 mm), EPDM black seal ring (over 54 mm)
Connection Technology: Press-fit
Leak Detection: Leaky if unpressed (up to 54 mm)
Installation: Suitable for both surface-mounted and concealed systems
Type Of Pressing Profile: M
Description

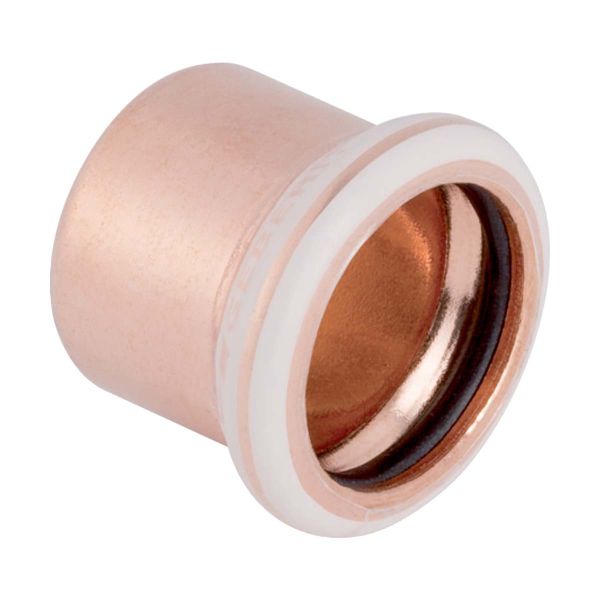

The Geberit Mapress Copper End Cap is designed to securely seal the end of a copper pipe in press-fit systems. It is ideal for use in potable water installations, as well as open and closed heating and cooling circuits. The end cap provides a reliable and long-lasting seal, ensuring a leak-free system. With press-fit technology, this component ensures fast, safe, and fire-free installation, making it perfect for new installations and renovation projects.
Key Features
High-Quality Copper Material: Made from Cu-DHP copper CW024A (EN 1412), the end cap offers excellent corrosion resistance and durability, ensuring long-term performance in both potable water and heating/cooling applications.
Leak Detection: The end cap is designed to be leaky if unpressed for diameters up to 54 mm, helping installers identify unpressed connections during installation, ensuring a secure and reliable seal.
Reliable Seal Rings: Equipped with CIIR black seal rings for diameters up to 54 mm and EPDM black seal rings for larger diameters, the end cap ensures a leak-proof connection in various systems.
No Hot Works Required: The press-fit connection eliminates the need for welding or soldering, reducing the risk of fire hazards and allowing for faster, safer installation. This is particularly beneficial for residential and renovation projects.
Clean and Hygienic: The seal rings are protected from dirt during installation, ensuring a clean and hygienic connection, which is especially important in potable water systems.
Clear Identification: The fitting includes colour-coded indicators and transparent protection plugs, allowing for easy identification of materials and reducing the risk of confusion with third-party products.
Cost-Effective: The press-fit system does not require consumables such as gas or oxygen, making the installation more economical and efficient.
Versatile Application: Suitable for both surface-mounted and concealed installations, the end cap can be used in a variety of plumbing and heating systems, offering flexibility for different project types.
SKU
Art. no.
DN
d, ø (mm)
L (cm)
Z (cm)
486726
60232
12
15
2.3
0.3
486727
60233
15
18
2.3
0.3
486728
60234
20
22
2.5
0.4
486729
60235
25
28
2.7
0.4
486730
60236
32
35
3
0.4
486731
60237
40
42
3.4
0.4
486732
60238
50
54
3.9
0.4
486733
60239
65
66.7
5.9
0.9
486734
60240
65
76.1
6.4
1.1
486735
60241
80
88.9
7.1
1.1
486736
60242
100
108
8.6
1.1
Application Purposes
Operating Temperature
Maximum Operating Pressure
Liquid Media
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa (5)
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (4)
For cooling and heating water with antifreeze agent
-30 – +120 °C
16 bar / 1600 kPa (4)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (4) (9)
For service water and process water
0–120 °C
16 bar / 1600 kPa (7)
Gaseous Media
For compressed air (purity class oil 2-3) (1)
0–100 °C
12 bar / 1200 kPa (6)
For compressed air (purity class oil 0-X) (1)
0–100 °C
12 bar / 1200 kPa (6)
For negative pressure (2)
0–100 °C
Abs. ≥ 0,2 bar/20 kPa
For inert gases (e.g. nitrogen)
0–100 °C
12 bar / 1200 kPa6)
For natural gases
-20 – +70 °C
MOP 5 / GT 1
For liquefied gases
-20 – +70 °C
MOP 5 / GT 1
(1) Usable negative pressure for Geberit piping systems: The usable negative pressure results from the air pressure at the installation site minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(2) Usable negative pressure for Geberit piping systems: The usable negative pressure is calculated on the basis of the air pressure at the place of installation minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(3) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(4) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(5) 10 bar / 1000 kPa for MasterFix and MeplaFix
(6) Approved up to d54 mm
(7) Following Geberit approval
(8) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
(9) Not for fittings with EPDM, black seal rings
