Operating Temperature: 0-100°C (For cold and hot potable water)
Maximum Operating Pressure: 16 bar/ 1600kPa (For cold and hot potable water)
Seal Rings: CIIR black seal ring (up to 54 mm), EPDM black seal ring (over 54 mm)
Connection Technology: Press-fit
Leak Detection: Leaky if unpressed (up to 54 mm
Installation: Suitable for both surface-mounted and concealed systems
Type Of Pressing Profile: M
Description

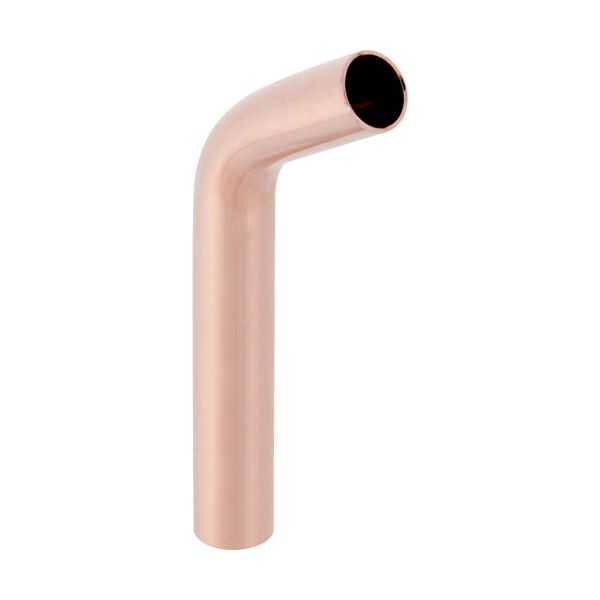

The Geberit Mapress Copper Bend 60 is designed to facilitate a smooth and secure 60-degree directional change in copper piping systems. It is ideal for use in potable water installations, as well as in open and closed heating and cooling circuits. With advanced press-fit technology, the bend allows for quick, reliable, and fire-free installation, making it an excellent choice for both new builds and renovation projects.
Key Features
High-Quality Copper Material: Manufactured from Cu-DHP copper CW024A (EN 1412), the bend offers outstanding corrosion resistance and durability, ensuring long-term performance in potable water and heating/cooling applications.
No Hot Works Required: The press-fit connection eliminates the need for welding or soldering, reducing installation time and costs while ensuring fire-safe installation, especially in residential or confined spaces.
Leak Detection: Designed to be leaky if unpressed, the fitting allows installers to easily identify any unpressed connections during installation, ensuring a fully secure system.
Hygienic Installation: The seal rings are protected from dirt during installation, ensuring a clean and hygienic connection, which is particularly important in potable water systems.
Clear Identification: With colour-coded indicators and transparent protection plugs, the Geberit Mapress Copper Bend 60 ensures that installers can easily distinguish between product materials and applications, preventing confusion with third-party products.
Versatile Application: Suitable for both surface-mounted and concealed installations, this bend is perfect for a wide range of plumbing and heating systems, offering flexibility and ease of use in different project types.
SKU
Art. no.
DN
d, ø (mm)
arc (degrees)
H (cm)
H1 (cm)
K (cm)
K1 max. (cm)
486683
60955
25
28
60
6.1
13.7
0
7.6
486684
60956
32
35
60
5.9
13.6
0
7.7
486685
60957
40
42
60
6.9
15.9
0
9
Application Purposes
Operating Temperature
Maximum Operating Pressure
Liquid Media
For cold and hot potable water
0–100 °C
16 bar / 1600 kPa (5)
For cooling and heating water without antifreeze agent
0–100 °C
16 bar / 1600 kPa (4)
For cooling and heating water with antifreeze agent
-30 – +120 °C
16 bar / 1600 kPa (4)
For district heating water ≤ 120 °C
0–120 °C
16 bar / 1600 kPa (4) (9)
For service water and process water
0–120 °C
16 bar / 1600 kPa (7)
Gaseous Media
For compressed air (purity class oil 2-3) (1)
0–100 °C
12 bar / 1200 kPa (6)
For compressed air (purity class oil 0-X) (1)
0–100 °C
12 bar / 1200 kPa (6)
For negative pressure (2)
0–100 °C
Abs. ≥ 0,2 bar/20 kPa
For inert gases (e.g. nitrogen)
0–100 °C
12 bar / 1200 kPa6)
For natural gases
-20 – +70 °C
MOP 5 / GT 1
For liquefied gases
-20 – +70 °C
MOP 5 / GT 1
(1) Usable negative pressure for Geberit piping systems: The usable negative pressure results from the air pressure at the installation site minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(2) Usable negative pressure for Geberit piping systems: The usable negative pressure is calculated on the basis of the air pressure at the place of installation minus the absolute pressure of 200 mbar. Example: 980 mbar air pressure - 200 mbar absolute pressure = 780 mbar usable negative pressure in the piping system
(3) Lifetime with collector standstill: 200 h/a at 180 °C; 60 h/a at 200 °C; total 500 h/lifetime at 220 °C
(4) Use of inhibitors, corrosion-protection agents, antifreeze agents only after approval by Geberit
(5) 10 bar / 1000 kPa for MasterFix and MeplaFix
(6) Approved up to d54 mm
(7) Following Geberit approval
(8) Oil purity class in accordance with ISO 8573-1:2010E; for details on moisture and particles, see technical information "Geberit Piping Systems for Compressed Air Installations"
(9) Not for fittings with EPDM, black seal rings
