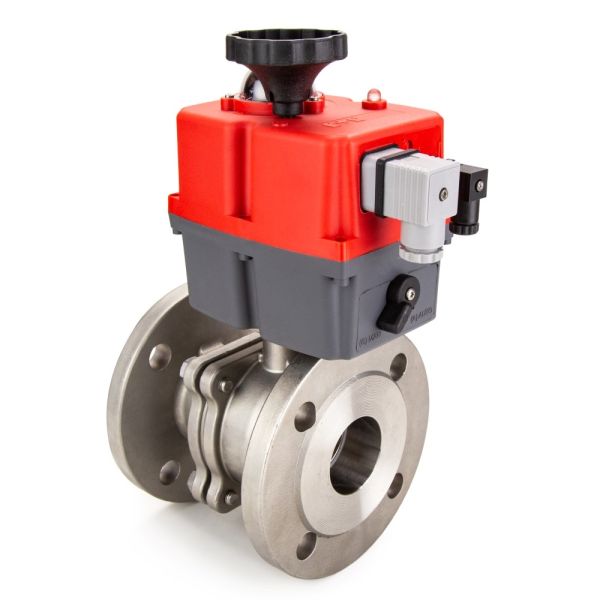

Electric 2 Way Haitima 2020D Flanged

Key Features / Tech Specs:

• Valve material: Stainless Steel
• Flanged ends
• Fire safe and anti static (Valve Only)
• Sizes: 1/2" to 4"
• Working Temperature: -20°C to 70°C
• Max. Working Pressure: 40 bar 1/2" - 2"
• Max. Working Pressure: 16 bar 2 1/2 - 4""
• 24-240V AC/DC Actuator 1/2" - 4"
• Valve manufacturer: Haitima
• Actuator manufacturer: J+J

Useful Info:

Size (Inch)	Product Code	DN	A	B	C	F	H	W
1/2	395351	15	181	169	50.5	108	219.5	110
3/4	395352	20	181	169	54	117	223	110
1	395353	25	181	169	59	127.5	228	110
1 1/4	395354	32	181	169	62	140.5	231	110
1 1/2	395355	40	181	169	76.5	165	245.5	110
2	395356	50	181	169	84.5	178	253.5	110
2 1/2	395357	65	181	196	105	190.5	301	110
3	395358	80	181	196	110.5	203	306.5	110
4	395359	100	181	196	136	229	332	110



Actuated valves are assembled and tested to order, they cannot be returned for a refund.

Actuator:

The electric actuator is manufactured with a fully weatherproof polyamide body that features a selectable manual override that stops the actuator responding to remote signals during operation.

It has an LED light to indicate the status of the actuator as well as auto voltage sensing and an electronic torque limiter with auto-gearbox relaxing.

Actuator Specification

Maximum Operational Torque	20Nm/177lb/in
Operating Temperature	-20°C to 70°C
Declutching	Manual and automatic
Operational Time Unload	10 Sec/ 90°
Torque Limiter	Electronic
3 Position Actuator	0°-45°-90° or 0°-90°-180°
Weatherproofing	IP67 Full weatherproof housing
Drive Type	Female star
Electrical Connection	Din plugs
Approvals	CE marked
Weight	1.8kg

(Actuator Datasheet PDF)

Valve:

• Blow-out proof stem
• Live-loading design
• Anit-static device
• Locking device
• ISO 5211 Direct mounting pad

Useful Info:

This 2 way ball valve allows you to connect two flanged connections while being able to change flow rate from one side to the other.
