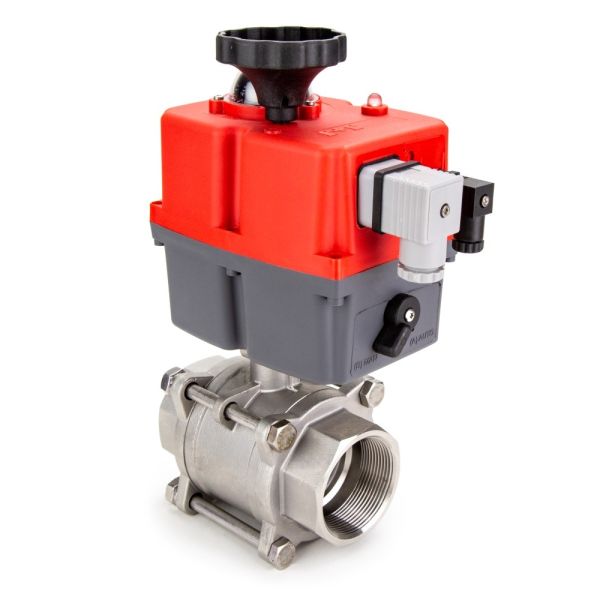

Electric 2 Way Haitima 2011ND Socket Weld Ends

Key Features / Tech Specs:

• Valve material: Stainless Steel
• Nominal bore socket welds
• 3 Piece ball valve
• Sizes: 1/2" to 4"
• Working Temperature: -20°C to 70°C
• Max. Working Pressure: 63 bar
• 24-240V AC/DC Actuator 1/2" - 3"
• 24V/110-240 AC/DC Actuator 4"
• Valve manufacturer: Haitima
• Actuator manufacturer: J+J

Useful Info:

Size (Inch)	Product Code	Ød	Ød1	ØD	Ød3	A	B	C	E	H	W
	Socket Weld		2012ND	2012ND	2012ND
1/4	-	8	-	-	-	181	169	40.3	55	209.3	110
3/8	-	10	-	-	-	181	169	40.3	60	209.3	110
1/2	395273	15	15.8	22.3	22	181	169	35.4	65	204.4	110
3/4	395274	20	20.9	27.7	27.5	181	169	39.5	75	208.5	110
1	395275	25	26.6	34.4	34	181	169	49	85	218	110
1 1/4	395276	32	35.1	43.2	43	181	169	54.2	101	223.2	110
1 1/2	395277	40	40.9	49.3	49	181	169	64.6	112	233.6	110
2	395278	50	52.5	61.5	61	181	196	72.5	130	268.5	110
2 1/2	395279	65	62.7	74.5	74	181	196	92	162	288	110
3	395280	78	77.9	91	90	181	196	100	188	296	110
4	395281/2	96	330	125.5	224	235	254	132	224	386	214



Actuated valves are assembled and tested to order, they cannot be returned for a refund.

Actuator:

The electric actuator is manufactured with a fully weatherproof polyamide body that features a selectable manual override that stops the actuator responding to remote signals during operation.

It has an LED light to indicate the status of the actuator as well as auto voltage sensing and an electronic torque limiter with auto-gearbox relaxing.

Actuator Specification

Maximum Operational Torque	20Nm/177lb/in
Operating Temperature	-20°C to 70°C
Declutching	Manual and automatic
Operational Time Unload	10 Sec/ 90°
Torque Limiter	Electronic
3 Position Actuator	0°-45°-90° or 0°-90°-180°
Weatherproofing	IP67 Full weatherproof housing
Drive Type	Female star
Electrical Connection	Din plugs
Approvals	CE marked
Weight	1.8kg

(Actuator Datasheet PDF)

Valve:

• Blow-out proof stem
• Live-loading design
• Anit-static device
• Locking device
• ISO 5211 Direct mounting pad

Useful Info:

This 2 Way Ball Valve Mount allows you to connect socket welds while being able to change flow rate from one side to the other.



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
