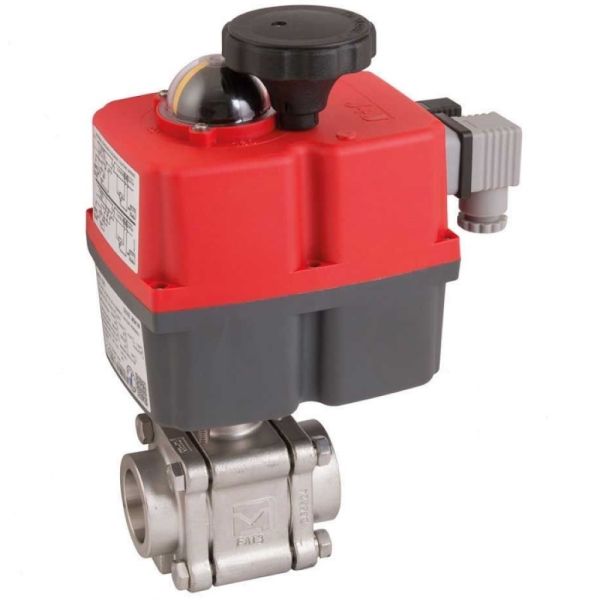

Electric 2 Way Haitima 2011KMD Socket Welds

Key Features / Tech Specs:

• Valve material: Stainless Steel
• Nominal bore socket weld ends
• Sizes: 1/2" to 2"
• Working Temperature: -20°C to 70°C
• Max. Working Pressure: 63 bar
• 24-240V AC/DC Actuator 1/2" - 2"
• Valve manufacturer: Haitima
• Actuator manufacturer: J+J

Useful Info:

Size (Inch)	Product Code	Ød	Ød1	ØD	Ød3	A	B	C	E	H	W
		BSP	BSP	BSP	BSP
1/2	395295	15	15	22.3	22	181	169	43	75	244	110
3/4	395296	20	19.9	28.3	27.5	181	169	46	80	249	110
1	395297	25	23.6	34.4	34.5	181	169	58	93	227	110
1 1/4	395298	32	-	-	43	181	169	62.8	110	231.8	110
1 1/2	395299	40	38	49.9	49	181	169	74.5	120	243.5	110
2	395300	50	49.8	63.8	61.2	181	196	82	140	278	110



Actuated valves are assembled and tested to order, they cannot be returned for a refund.

Actuator:

The electric actuator is manufactured with a fully weatherproof polyamide body that features a selectable manual override that stops the actuator responding to remote signals during operation.

It has an LED light to indicate the status of the actuator as well as auto voltage sensing and an electronic torque limiter with auto-gearbox relaxing.

Actuator Specification

Maximum Operational Torque	20Nm/177lb/in
Operating Temperature	-20°C to 70°C
Declutching	Manual and automatic
Operational Time Unload	10 Sec/ 90°
Torque Limiter	Electronic
3 Position Actuator	0°-45°-90° or 0°-90°-180°
Weatherproofing	IP67 Full weatherproof housing
Drive Type	Female star
Electrical Connection	Din plugs
Approvals	CE marked
Weight	1.8kg

(Actuator Datasheet PDF)

Valve:

• Socket Welds
• 316 Stainless Steel
• ISO 5211 Direct mounting pad

Useful Info:

This 2 Way Ball Valve Mount allows you to connect socket welds while being able to change flow rate from one side to the other.
