Application: Quick access to water supply in irrigation and water systems
Connection Type: Quick coupling mechanism
Usage: Suitable for outdoor, agricultural, and landscaping applications
Description
This quick coupling valve is designed for fast and convenient connection or disconnection of irrigation or water distribution lines without the need to shut down the system. Ideal for agricultural, landscaping, and garden watering systems, it allows for rapid access to water outlets while maintaining secure sealing when closed. Made from durable materials, it provides long-term reliability under regular operation in outdoor environments.
Key Features & Benefits
Fast Connection: Enables quick coupling and uncoupling without depressurising the system.
Durable Construction: Designed to withstand outdoor conditions and repeated use.
Secure Seal: Prevents leaks when closed, ensuring system efficiency.
Versatile Use: Ideal for irrigation, landscaping, horticulture, and water distribution systems.
User-Friendly: Simple operation without specialised tools.

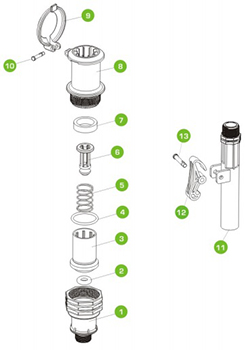

Number
Description
1
Thread 3/4" / 1"
2
NBR O-Ring
3
Valve Body
4
NBR O-Ring
5
Stainless Steel Spring
6
Piston
7
NBR O-Ring
8
Body
9
Cover
10
Cover Pivot
11
Key
12
Hook
13
Hook Pivot

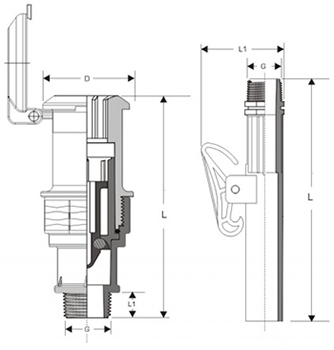

SKU
G (")
LA
L1
D
Z
L
360129
3/4
152
18
60
57.5
170
360130
1
155
21
60
-
-
