Reinforcement Ring: Stainless Steel (2" and above)
Operating Pressure: Up to 16 bar at 20°C (size dependent)
Temperature Range: -10°C to +60°C
Thread Standard: BSP (British Standard Pipe) Female
Standards Compliance: BS EN 12201, ISO 17885
Pipe Compatibility: MDPE pipe of matching outer diameter
Liner Requirement: Pipe liners (stiffeners) are strongly recommended for all compression joints
Description
The MDPE Compression Tee with Female BSP Thread is engineered to connect two MDPE pipe lengths with a branch outlet featuring a female BSP thread. This configuration is ideal for integrating threaded components such as valves or pressure gauges into a cold water system. Built for above-ground or below-ground installations, the fitting delivers a leak-free seal, robust performance, and quick installation. For best results and to maintain joint integrity, pipe liners (stiffeners) are strongly recommended.
Key Features & Benefits
Three-Way Connection with Threaded Branch: connects two MDPE pipes and one BSP threaded fitting at a 90° angle.
Versatile System Integration: Suitable for incorporating threaded devices like pressure gauges, taps, or control valves.
Durable Construction: Made from high-impact, UV-stabilised polypropylene for long-term performance.
High Sealing Integrity: Compression joints with nitrile rubber seals offer leak-free performance under pressure.
Quick Installation: Push-fit design allows for fast assembly without special tools or heat.

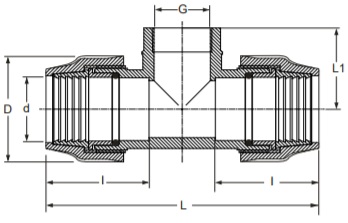

Dimensions
Product Code
Manufacturer Code
d x G x d (mm x Inch x mm)
D (mm)
L (mm)
I (mm)
L1 (mm)
352054
54940-2-B
20 x 1/2"
47
145
59
45
352055
54940-2-C
20 x 3/4"
47
145
59
45
352056
54940-3-B
25 x 1/2"
54
162
68
45
352057
54940-3-C
25 x 3/4"
54
162
68
46
352058
54940-3-D
25 x 1"
54
162
68
49
352059
54940-4-C
32 x 3/4"
63.5
180.5
72.5
52
352060
54940-4-D
32 x 1"
63.5
180.5
72.5
53
352061
54940-6-D
40 x 1"
76
212
86
60
352062
54940-6-E
40 x 1 1/4"
76
212
86
62
352063
54940-6-F
40 x 1 1/2"
76
212
86
63
352064
54940-7-E
50 x 1 1/4"
91.5
250
98
72
352065
54940-7-F
50 x 1 1/2"
91.5
250
98
72
352066
54940-8-G
63 x 2"
110.5
295
113
85
352067
54940-9-G
75 x 2
127.5
333
128.5
97
352068
54940-9-H
75 x 2 1/2"
127.5
333
128.5
97
352069
54940-10-L
90 x 3"
150
404
153
112
352053
54940-11-M
110 x 4"
176.5
480
183.5
135
