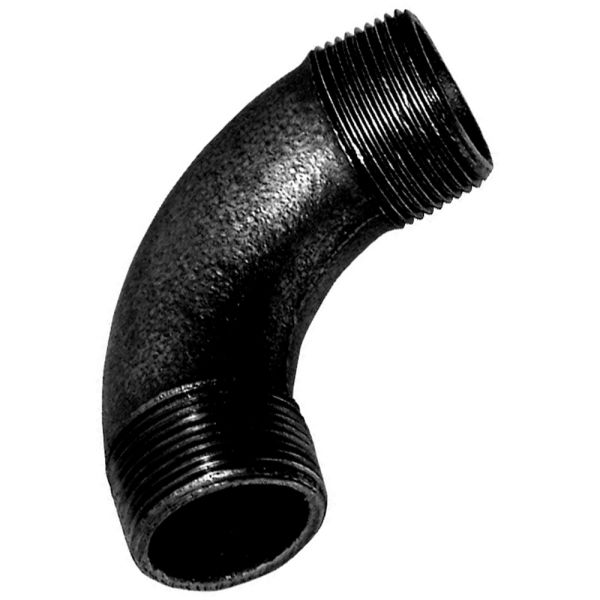

Bend 90 Long M Thread
Click on the image to activate zoom.
All text and product images are the intellectual property and copyright of Pipestock Limited
Key Features / Tech Specs & Dimensions:
- Material: malleable iron (black)
- Male BSPT threads
| Product Code | Diameter (inch) | b (mm) | Pressure Rating (bar) |
| 362067 | ½ | 48 | 25 |
| 362068 | ¾ | 60 | 25 |
| 362069 | 1 | 75 | 25 |
| 362070 | 1¼ | 95 | 25 |
| 362071 | 1½ | 105 | 25 |
| 362072 | 2 | 130 | 25 |
IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.
Useful Info:
These bends are used for the connection of equally sized female malleable iron pipe or fittings at an angle of 90°. The bend is longer for a more efficient flow.
