Union Elbow 90 F Thread

Useful Information

All text and product images are the intellectual property and copyright of Pipestock Limited

Key Features / Tech Specs & Dimensions:

  • Material: malleable iron (black)
  • Female BSPT thread
  • BS EN 10242
  • Sizes available: ½" to 1"

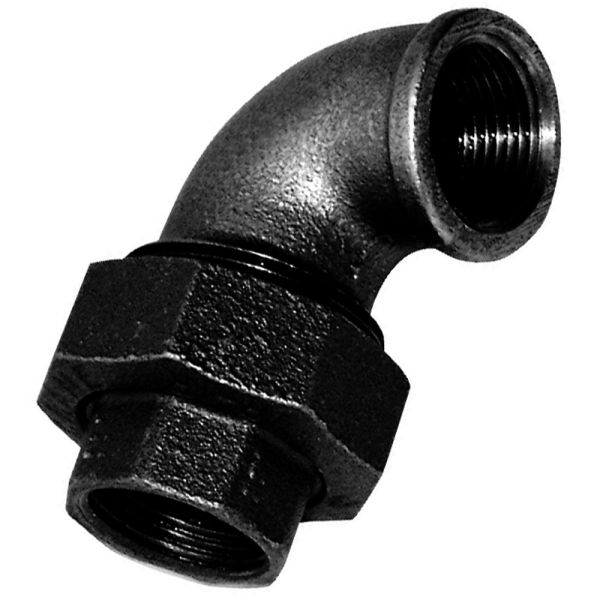

Malleable Iron Female Union Elbow 90°

Product Code Diameter (inch) A (mm) C (mm) F (mm) Weight (kg)
363068 ½ 56 28 42 0.257
363069 ¾ 64 33 49 0.373
363070 1 72 38 57 0.544



IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information then don’t hesitate to ring us here at Pipestock on 0845 634 1053. We’re always happy to help!

Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
363068MLB IRN CR Union Elbow 90 Female Black 1/2" £21.00 33% £14.07
363069MLB IRN CR Union Elbow 90 Female Black 3/4" £19.35 33% £12.96
363070MLB IRN CR Union Elbow 90 Female Black 1" £35.45 33% £23.75
