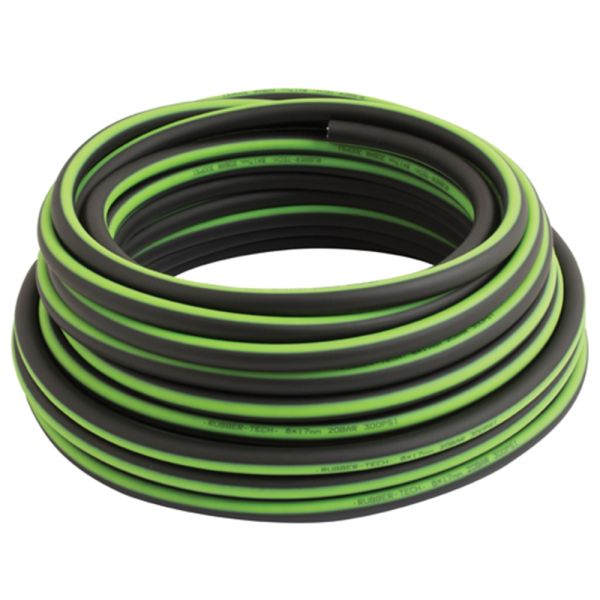

Superior Rubber Alloy Air Hose
Technical Specification
- Material: Rubber alloy
- Reinforcement: High tensile braided polyester
- Temperature Range: -20°C to +60°C
- Maximum Working Pressure: 20 bar
- Safety Factor: 3:1
- Silicone Content: Silicone free
- Resistances: Ozone, oil, fuel, abrasion
- Lengths Available: 30m and 100m coils
- Internal Diameters: 6.3mm to 25mm
- Outer Diameters: 14mm to 37mm
Description
Engineered from an advanced rubber alloy compound, this hose delivers the full performance of traditional rubber with superior handling characteristics. Designed for demanding air applications, it features high tensile polyester braiding for reinforcement, ensuring long service life under pressure. The smooth bore provides excellent airflow, while its kink resistance and flexibility make it easy to handle, even in tight spaces. With outstanding resistance to abrasion, fuel, oil, and ozone, it's ideal for outdoor use in tough environments. The high-visibility green stripe enhances on-site safety and reduces trip hazards.
Key Features & Benefits
- High tensile braided polyester reinforcement for added strength
- Exceptional flexibility with excellent bend radius and anti-kink performance
- Abrasion, fuel and oil-resistant outer cover for long-term durability
- Silicone-free formulation, safe for sensitive environments
- Highly visible green stripe improves safety in busy or low-light areas
- Excellent ozone resistance for reliable outdoor use
- Smooth bore ensures consistent airflow and operational efficiency
- Built to a 3:1 safety factor for added operational confidence
- Available in a range of sizes and coil lengths to suit varied applications
| Dimensions and Pressure Ratings | ||||
| Product Code | Internal Diameter (mm) | Outer Diameter (mm) | Pressure Rating (bar) | Length (m) |
| 378821 | 6.3 | 14 | 20 | 30 |
| 378822 | 8 | 17 | 20 | 30 |
| 378823 | 10 | 19 | 20 | 30 |
| 378824 | 12.5 | 23 | 20 | 30 |
| 378825 | 19 | 30 | 20 | 30 |
| 378826 | 25 | 37 | 20 | 30 |
| 378827 | 6.3 | 14 | 20 | 100 |
| 378828 | 8 | 17 | 20 | 100 |
| 378829 | 10 | 19 | 20 | 100 |
| 378830 | 12.5 | 23 | 20 | 100 |
| 378831 | 19 | 30 | 20 | 100 |
| 378832 | 25 | 37 | 20 | 100 |
If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.
