Elbow 90° Plain x Thread F

Useful Information

These ecoFIT socket-fusion fittings, from Georg Fischer, are manufactured from heavy-duty and corrosion-resistant PE80 polyethylene for pipeline construction. They are suitable for conveying gas and water through ground-layed pipe systems.

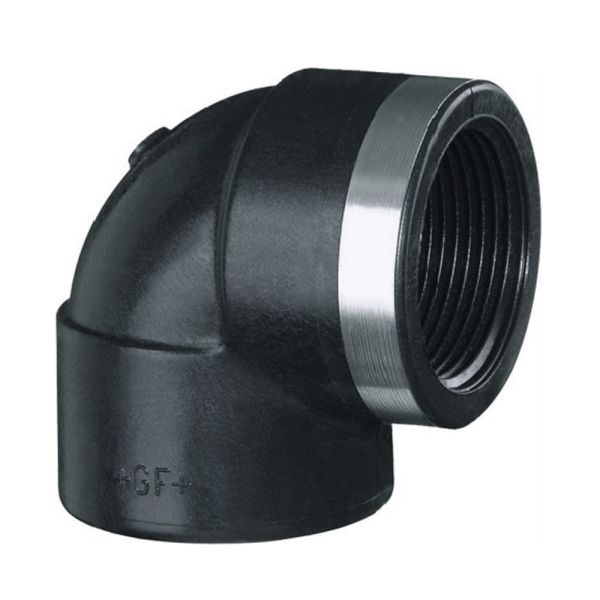

These elbows have a plain end and a female threaded end with a stainless steel reinforcing ring. They can be connected to plastic or metal threads whilst the plain end should be solvent cemented to plastic pipe or fittings.

Pressure Rating 10 bar
Temperature Range -50°C to +60°C
Sizes 20 - 40mm
Colour Black - RAL 9005

GF-plain-x-thread-elbow-diagram

Product Code d (mm) Rp (inch) z1 (mm) z2 (mm) D (mm) L (mm) Weight (kg)
401931 20 1/2 14 14 30 28 0.024
401932 25 3/4 16 16 35 32 0.033
401933 32 1 20 20 44 38 0.061
401934 40 1 1/4 24 24 54 44 0.094




If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.


Grouped product items
CodeProduct NameList PriceYou SaveYou Pay Quantity
401931GF ecoFIT SF PE Elbow 90° x Thread F 10 Bar 20mm x 1/2" £23.02 20% £18.42
401932GF ecoFIT SF PE Elbow 90° x Thread F 10 Bar 25mm x 3/4" £46.67 20% £37.34
401933GF ecoFIT SF PE Elbow 90° x Thread F 10 Bar 32mm x 1" £49.65 20% £39.72
401934GF ecoFIT SF PE Elbow 90° x Thread F 10 Bar 40mm x 1 1/4" £98.85 20% £79.08
