Frankische Alpex-Duo XS Wall Mount Elbow 35mm
Technical Specification
- Product Type: Female thread wall mount elbow
- Thread Standard: DIN EN 10226-1
- Material: Dezincification-resistant (DZR) brass
- Sealing Type: Flat-sealing design
- Pressing Sleeve: stainless steel
- Fixation Ring: White fixation ring with integrated inspection holes
- Connection Security: Leak function ensures a secure connection
- Mounting Type: 35mm wall mount
- Sizes Available: 16mm – 26mm
- Applications: Designed for tee and serial installations in drinking water systems
Description
The female thread 35mm wall mount elbow is engineered for reliable and secure fitting connections in tee and serial installations within drinking water systems. Manufactured from dezincification-resistant (DZR) brass, this component ensures durability and long-term corrosion resistance. The elbow features a fixed stainless steel pressing sleeve with an integrated leak function, providing a secure and leak-free connection. Its white fixation ring with integrated inspection holes simplifies installation and verification.
Designed to optimise system efficiency, the innovative structure allows for up to 30% greater flow rate. With no calibration required, the installation process is streamlined to just three simple steps. Unique laser engraving provides easy identification of the fitting for quick and accurate use in plumbing.
Key Features
-
Flow-Optimised Performance: Up to 30% larger cross-sectional surface for reduced pressure loss and better flow
-
Leak-Before-Press Technology: Detects unpressed joints during pressure testing to prevent failures
-
Hygienic Brass Construction: Dezincification-resistant and lead-free, compliant with drinking water regulations
-
Effortless Installation: No calibration required – complete in just three simple steps
-
Versatile Tool Use: Press-compatible with both F and TH contours for installation flexibility
-
Accurate Positioning: White fixation ring with large inspection holes confirms correct pipe insertion
-
Permanent Identification: Laser engraving ensures easy product recognition and traceability

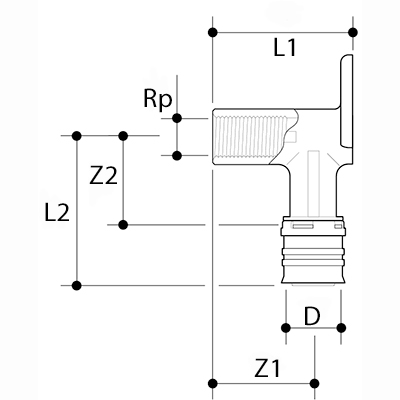

| SKU | Frankische Code | D (mm) | Rp (") | L (mm) | L (mm) | Z (mm) | Z (mm) | Weight (kg) |
| 488703 | 8291672001 | 16 | 1/2 | 35 | 47 | 18 | 23 | 0.110 |
| 488704 | 8292072001 | 20 | 1/2 | 35 | 48 | 18 | 23 | 0.119 |
| 488705 | 8292072301 | 20 | 3/4 | 35 | 48 | 18 | 23 | 0.130 |
| 488706 | 8292672001 | 26 | 3/4 | 35 | 62 | 18 | 23 | 0.164 |
