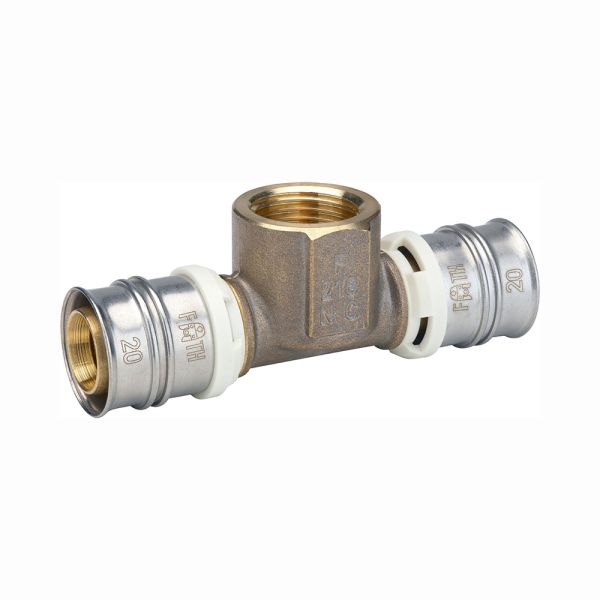

Frankische Alpex-Duo XS Tee 90 Thread F
Technical Specification
-
Product Type: 90° tee with female thread
- Size: 16 and 32mm
-
Thread Standard: DIN EN 10226-1
-
Material: Dezincification-resistant, lead-free brass
-
Pressing Compatibility: F-contour and TH-contour
-
Leak Before Press Function: Conforms to DVGW standards
-
Inspection Features: Integrated inspection holes for visual confirmation
-
Identification: Laser-engraved sleeves for clear on-site marking
- Connection: Fixed stainless steel pressing sleeves with white fixation rings
- Application: Drinking water and heating system installations
Description
The female thread tee adapter is a high-performance fitting designed for potable water and heating systems. Manufactured from dezincification-resistant brass, it ensures long-term corrosion resistance and reliability. Featuring white fixation rings with integrated inspection holes and fixed stainless steel pressing sleeves, this fitting provides a secure and leak-proof connection. The innovative leak function enhances installation security, while its laser engraving ensures easy identification and traceability.
Key Features
- Improved Flow Capacity: Provides up to 30% larger internal cross-section for enhanced system efficiency
- Leak Detection Safety: Leak-before-press function highlights unpressed connections during system testing
- High-Grade Brass Material: Lead-free and corrosion-resistant for long-lasting hygiene and reliability
- Fast, Tool-Compatible Installation: Simple three-step press fit with no calibration required
- Dual Press Compatibility: Accepts both F and TH contour tools for flexible installation
- Clear Visual Inspection: White fixation rings feature large openings to confirm correct pipe alignment
- Laser-Engraved Sleeves: Ensure quick, error-free identification on site

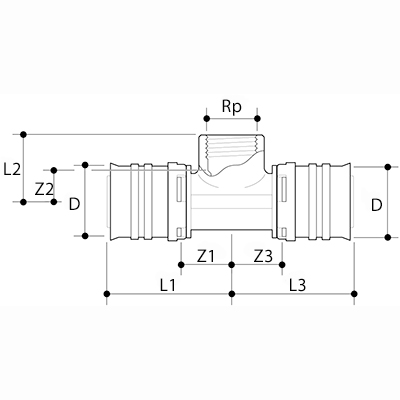

| SKU | Frankische Code | D (mm) | Rp (") | L (mm) | L (mm) | L (mm) | Z (mm) | Z (mm) | Z (mm) | Weight (kg) |
| 488639 | 8291674201 | 16 | 1/2 | 43 | 18 | 43 | 19 | 5 | 19 | 0.106 |
| 488640 | 8292074201 | 20 | 1/2 | 44 | 19 | 44 | 19 | 6 | 19 | 0.129 |
| 488641 | 8292074301 | 20 | 3/4 | 45 | 19 | 45 | 20 | 6 | 20 | 0.151 |
| 488642 | 8292674201 | 26 | 1/2 | 53 | 20 | 53 | 19 | 7 | 19 | 0.180 |
| 488643 | 8292674301 | 26 | 3/4 | 56 | 22 | 56 | 22 | 7 | 22 | 0.199 |
| 488644 | 8293274201 | 32 | 1/2 | 53 | 26 | 53 | 22 | 11 | 22 | 0.216 |
| 488645 | 8293274301 | 32 | 3/4 | 56 | 26 | 56 | 22 | 11 | 22 | 0.239 |
| 488646 | 8293274401 | 32 | 1 | 57 | 26 | 57 | 22 | 11 | 22 | 0.267 |
