Frankische Alpex-Duo XS Reducing Tee 90

Loading...

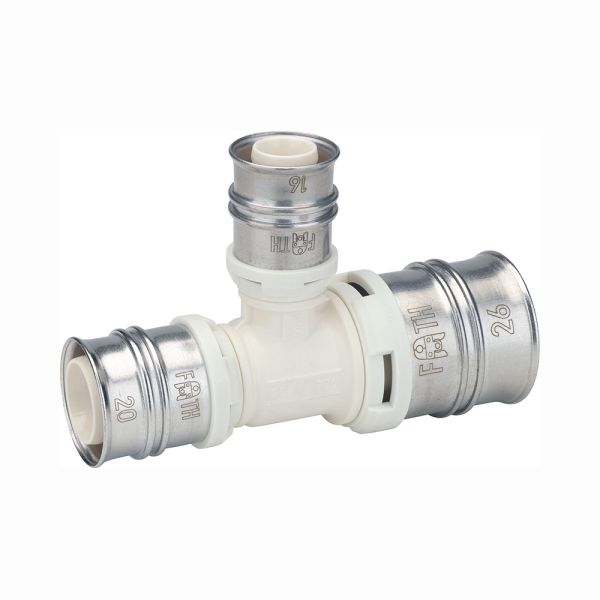

main product photo
More Info
Useful Information
WRAS & BSI Approved Logos

Technical Specification

  • Product Type: 90° reducing tee

  • Size: 16 - 32mm

  • Material: High-performance PPSU (Polyphenylsulfone)

  • Pressing Compatibility: F-contour and TH-contour

  • Leak Before Press Function: Compliant with DVGW standards

  • Inspection Features: Integrated inspection holes for visual verification

  • Identification: Laser-engraved pressing sleeves

  • Connection: Fixed stainless steel pressing sleeves with white fixation rings
  • Application: Suitable for drinking water and heating system installations

Description

The alpex-duo XS reduced tee is a high-quality PPSU fitting designed for secure and efficient installation in potable water and heating systems. Featuring fixed stainless steel pressing sleeves and white fixation rings with integrated inspection holes, this fitting ensures a leak-proof and durable connection. Its compact design allows for seamless integration into pipe systems without the need for calibration, simplifying installation.



Key Features

  • Flow-Optimised Design: Provides up to 30% greater internal cross-section for improved system performance
  • Leak-Before-Press Technology: Highlights unpressed joints during pressure testing to enhance safety
  • Durable PPSU Construction: Lead-free, corrosion-resistant, and suitable for high temperatures
  • Streamlined Installation: Requires no calibration—fitted in three simple steps
  • Dual Contour Pressing: Compatible with both F and TH press jaws for greater flexibility
  • Visual Confirmation: White fixation rings include integrated inspection holes for secure placement
  • Laser-Engraved Sleeves: Simplifies product identification and prevents installation errors
SKU Frankische Code  D (mm) D (mm) D (mm) L (mm) L (mm) L (mm) Z (mm) Z (mm) Z (mm) Weight (kg)
488622 82816350 16 20 16 39 39 39 15 13 15 0.041
488623 82820333 20 16 16 37 37 37 13 13 13 0.041
488624 82820330 20 16 20 38 38 38 13 13 13 0.045
488625 82820303 20 20 16 39 39 39 15 15 15 0.042
488626 82820360 20 26 20 42 48 42 17 15 17 0.096
488627 82826335 26 16 20 50 50 50 20 25 20 0.056
488628 82826330 26 16 26 46 42 46 13 18 13 0.065
488629 82826353 26 20 16 44 43 44 16 18 16 0.057
488630 82826355 26 20 20 45 43 45 16 18 16 0.060
488631 82826350 26 20 26 48 42 48 15 18 15 0.070
488632 82826303 26 26 16 47 47 47 18 18 18 0.068
488633 82826305 26 26 20 47 47 47 18 18 18 0.070
488634 82832330 32 16 32 47 44 47 13 20 13 0.080
488635 82832356 32 20 26 49 45 49 16 21 16 0.080
488636 82832350 32 20 32 48 45 48 15 20 15 0.085
488637 82832366 32 26 26 52 55 52 18 21 18 0.091
488638 82832360 32 26 32 51 54 51 18 21 18 0.107

IMPORTANT: The technical data given on this website is for preliminary information purposes only and is published without guarantee. All line drawings are for illustrative purposes only and should not be regarded as wholly accurate in every detail. We reserve the right to withdraw or to alter the specification of any product without notice. For more information, please consult our Terms of Business.

If you require any further information, our excellent customer service team is here to help so please call us on 01794 835835.



More Info
Grouped product items
Code Product Name List Price You Save You Pay Quantity
488622 Alpex-Duo XS Reducing Tee 90°16mm x 20mm x 16mm £5.37 10%
You Pay:  £4.83
488623 Alpex-Duo XS Reducing Tee 90° 20mm x 16mm x 16mm £5.64 10%
You Pay:  £5.08
488624 Alpex-Duo XS Reducing Tee 90° 20mm x 16mm x 20mm £5.64 10%
You Pay:  £5.08
488625 Alpex-Duo XS Reducing Tee 90° 20mm x 20mm x 16mm £6.16 10%
You Pay:  £5.54
488626 Alpex-Duo XS Reducing Tee 90° 20mm x 26mm x 20mm £7.96 10%
You Pay:  £7.16
488627 Alpex-Duo XS Reducing Tee 90° 26mm x 16mm x 20mm £7.96 10%
You Pay:  £7.16
488628 Alpex-Duo XS Reducing Tee 90° 26mm x 16mm x 26mm £7.96 10%
You Pay:  £7.16
488629 Alpex-Duo XS Reducing Tee 90° 26mm x 20mm x 16mm £7.67 10%
You Pay:  £6.90
488630 Alpex-Duo XS Reducing Tee 90° 26mm x 20mm x 20mm £7.96 10%
You Pay:  £7.16
488631 Alpex-Duo XS Reducing Tee 90° 26mm x 20mm x 26mm £7.96 10%
You Pay:  £7.16
488632 Alpex-Duo XS Reducing Tee 90° 26mm x 26mm x 16mm £8.22 10%
You Pay:  £7.40
488633 Alpex-Duo XS Reducing Tee 90° 26mm x 26mm x 20mm £8.52 10%
You Pay:  £7.67
488634 Alpex-Duo XS Reducing Tee 90° 32mm x 16mm x 32mm £11.07 10%
You Pay:  £9.96
488635 Alpex-Duo XS Reducing Tee 90° 32mm x 20mm x 26mm £10.78 10%
You Pay:  £9.70
488636 Alpex-Duo XS Reducing Tee 90° 32mm x 20mm x 32mm £10.50 10%
You Pay:  £9.45
488637 Alpex-Duo XS Reducing Tee 90°32mm x 26mm x 26mm £12.17 10%
You Pay:  £10.95
488638 Alpex-Duo XS Reducing Tee 90° 32mm x 26mm 32mm £10.78 10%
You Pay:  £9.70
